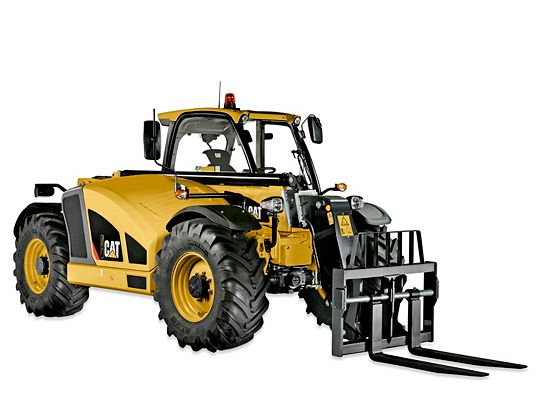

TH3510D Ag Handler
The TH3510D is precision engineered to handle any task, offering stability, maneuverability, speed and power in any application.
Documents
Engine OptionsTest
Choose the right engine for you – three fuel efficient Cat® engines are available to suit a wide range of applications.
Transmission OptionsTest
The Cat TH3510D features a six speed power shift transmission to give exceptional performance when towing trailers on the road.
Frame, Boom and LinkageTest
Designed for durability. Easy to access greasing points mean a long, trouble free life for the machine. A Z-bar linkage delivers powerful breakout forces and fast cycle times.
Powerful HydraulicsTest
A variable displacement piston pump matched to a high performance flow sharing valve makes multi functioning easy. The load sensing system means excellent fuel economy, as the pump only works when required.
CabTest
The cab is designed with the operator in mind with a multi function joystick and a comfortable working environment. The unique “Operator Preferences” feature allows the machine to be tuned to suit individual operators. Options include a heated air suspension seat, large display screen with pre-loaded load charts, rear view camera, reversing sensors and air conditioning.
Operating Specifications
| Rated Load Capacity | 3500kg7716lb |
|---|---|
| Maximum Lift Height | 9.8m32.2ft |
| Maximum Forward Reach | 6.6m21.7ft |
| Outside Turning Radius - Over Tires | 3.85m12.6ft |
| Outside Turning Radius - Over Forks | 4.88m16ft |
| Capacity at Maximum Forward Reach | 500kg1102lb |
| Capacity at Maximum Lift Height | 770kg1698lb |
Engine
| Engine Model | Cat C3.4B |
|---|
Engine Power
| Gross Power - 2,200 rpm - Option 2 | 106kW142HP |
|---|---|
| Gross Power - 2,200 rpm - Option 1 | 93kW124HP |
| Gross Power - 2,200 rpm - Standard | 83kW112HP |
Lift Capacity
| Capacity at Maximum Reach | 500kg1102lb |
|---|---|
| Rated Load Capacity | 3500kg7716lb |
| Capacity at Maximum Height | 770kg1698lb |
Lift and Reach
| Maximum Forward Reach | 6.6m21.7ft |
|---|---|
| Maximum Lift Height | 9.8m32.2ft |
Tires
| Standard | Mitas 15.5/80-24 16 ply |
|---|---|
| Option (8) | 13 × 24 Solid Tires |
| Option (5) | Michelin 400/80 24 Power CL |
| Option (3) | Michelin 500/70 R24 XMCL |
| Option (4) | Michelin 440/80 24 Power CL |
| Option (1) | Michelin 15.5 R25 XHA |
| Option (2) | Michelin 460/70 R24 XMCL |
| Option (7) | Firestone Duraforce |
| Option (6) | Michelin 460/70 R24 Bibload |
Service Refill Capacities
| Fuel Tank | 148l39.1gal (US) |
|---|---|
| Hydraulic Tank | 120l31.7gal (US) |
| Diesel Exhaust Fluid | 19l5gal (US) |
Hydraulic System
| Pump Type | Variable Flow, Axial Piston |
|---|---|
| Auxiliary Hydraulic Flow - Boom Head - Continuous | 95l/min25.1gal/min |
| System Pressure | 260bar3771psi |
| Auxiliary Hydraulic Flow - Boom Head - Intermittent | 95l/min25.1gal/min |
| Auxiliary Hydraulic Pressure | 245bar3553psi |
| Maximum Pump Capacity | 140l/min37gal/min |
| Auxiliary Hydraulic Flow - Machine Rear | 80l/min21.1gal/min |
| System Type | Load Sensing, Closed Center |
Boom Performance
| Boom Up | 8s8s |
|---|---|
| Boom Down | 6.5s6.5s |
| Tele In | 10.5s10.5s |
| Tele Out | 11s11s |
| Crowd Backward | 3.5s3.5s |
| Crowd Forward - Dump | 3s3s |
| Combined - Up and Out | 24s24s |
| Combined - Down and In | 12.8s12.8s |
Braking System
| Parking Brake | Mechanical lever on front axle |
|---|---|
| Service Brakes | Boosted on front and rear brakes |
Transmission*
| Type | Cat PG124 6 speed power shift |
|---|---|
| Reverse - 2 | 11.2km/h7mile/h |
| Forward - 5 | 25.3km/h15.7mile/h |
| Forward - 6 | 40km/h24.9mile/h |
| Forward - 1 | 5.7km/h3.5mile/h |
| Reverse - 3 | 25.3km/h15.7mile/h |
| Forward - 2 | 8.6km/h5.3mile/h |
| Forward - 4 | 16.6km/h10.3mile/h |
| Note | *Maximum speed subject to machine configuration. |
| Reverse - 1 | 5.7km/h3.5mile/h |
| Forward - 3 | 11.2km/h7mile/h |
Engine - Option 2
| Maximum Torque | 560N·m413ft·lbf |
|---|---|
| Displacement | 4.4l268.5in³ |
| Stroke | 127mm5in |
| Model* | Cat C4.4 ACERT |
| Bore | 105mm4.1in |
| Gross Power | 106 kW (142 hp/bhp) |
| Emissions | *Meets EU Stage IV emission standards. |
Performance
| Towable Mass - Hydraulically Braked | 12000kg26455lb |
|---|---|
| Drawbar Pull - 83 kW/111.3 hp Engine | 92kN20682lbf |
| Drawbar Pull - 106 kW/142.1 hp Engine | 97kN21806lbf |
| Boom Breakout Force | 41kN9217lbf |
| Drawbar Pull - 93 kW/124.1 hp Engine | 88kN19783lbf |
| Noise Levels - External | 106dB(A)106dB(A) |
| Bucket Breakout Force | 62kN13938lbf |
| Noise Levels - In Cab | 74dB(A)74dB(A) |
| Quick Coupler Rotation | 152° |
Dimensions (Approximate)
| Cab Width | 900mm3ft |
|---|---|
| Overhang | 1000mm3.3ft |
| Maximum Fork Dump Angle | 128° |
| Track | 1988mm6.5ft |
| Maximum Fork Crowd Angle | 24° |
| Overall Width - Standard Tires | 2382mm7.8ft |
| Overall Length to Front of Carriage | 5300mm17.4ft |
| Overall Height - Standard Tires* | 2475mm8.1ft |
| Machine Length | 5260mm17.3ft |
| Wheel Base | 3165mm10.4ft |
| Ground Clearance | 430mm1.4ft |
| Departure Angle | 60° |
Engine - Standard
| Stroke | 110mm4.3in |
|---|---|
| Model* | Cat C3.4B |
| Maximum Torque | 460N·m339.3ft·lbf |
| Displacement | 3.4l207.5in³ |
| Bore | 99mm3.9in |
| Emissions | *Meets EU Stage IV emission standards. |
| Gross Power | 83 kW (112 hp/bhp) |
Engine - Option 1
| Model* | Cat C4.4 ACERT™ |
|---|---|
| Gross Power | 93 kW (124 hp/bhp) |
| Bore | 105mm4.1in |
| Displacement | 4.4l268.5in³ |
| Maximum Torque | 530N·m390.9ft·lbf |
| Stroke | 127mm5in |
| Emissions | *Meets EU Stage IV emission standards. |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg of refrigerant which has a CO2 equivalent of 1.575 metric tonnes. |
|---|
Electrical
| Alternator Output | 12V/150A |
|---|---|
| Battery | 1 × 12V 1,000 CCA Battery |
Axles
| Front Axle | High bias, planetary reduction hubs with limited slip differential |
|---|---|
| Rear Axle | Open differential with planetary reduction hubs |
Weights
| Operating Weight - With Carriage and Forks* | 9149kg20170lb |
|---|---|
| Note | *Represents machine configuration of 106 kW (144 hp/bhp) engine on standard 15.5/80-24 16 ply tires. |
