DE50 GC Generator Set (50 Hz)
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Cat Generator Set PackageTest
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel EngineTest
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame AlternatorTest
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.1 Control PanelTest
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling SystemTest
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
CertificationsTest
- CE Certification Available
- CIS Certification Available
One Safe SourceTest
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product SupportTest
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Generator Set Specifications
| Maximum Rating | 50.0 kVA |
|---|---|
| Minimum Rating | 50.0 kVA |
| Emissions/Fuel Strategy | Non Regulated |
| Voltage | 380 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby |
Engine Specifications
| Engine Model | Cat® C3.3, In-line 3, 4-cycle diesel |
|---|---|
| Bore | 105mm4.1in |
| Stroke | 127mm5in |
| Displacement | 3.3l201.4in³ |
| Compression Ratio | 17.25:1 |
| Aspiration | Turbocharged |
| Fuel System | Inline |
| Governor Type | Mechanical |
Generator Set Dimensions
| Length - Maximum | 2278mm89.7in |
|---|---|
| Width - Maximum | 900mm35.4in |
| Height - Maximum | 1322mm52in |
| Dry Weight - Genset (maximum) | 1031kg2273lb |

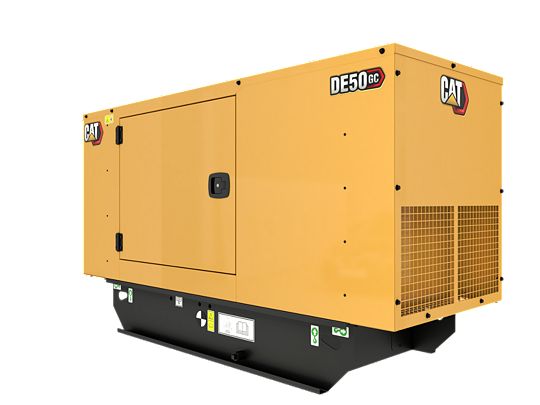

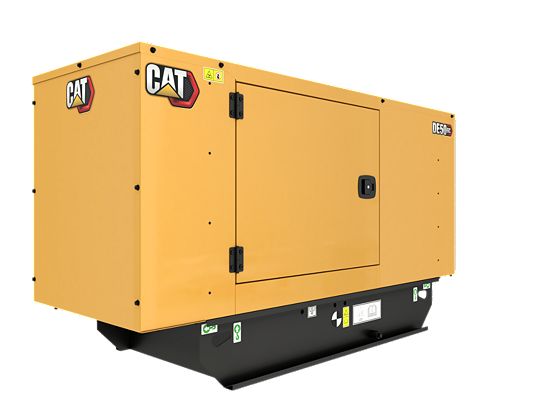

360° Exterior View
360° Exterior View. Double click on the image to zoom in on any area of the product.
