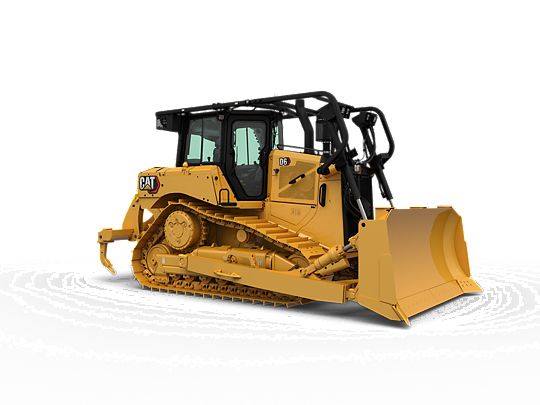

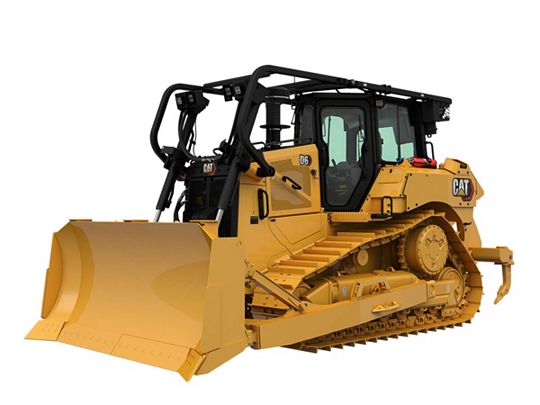

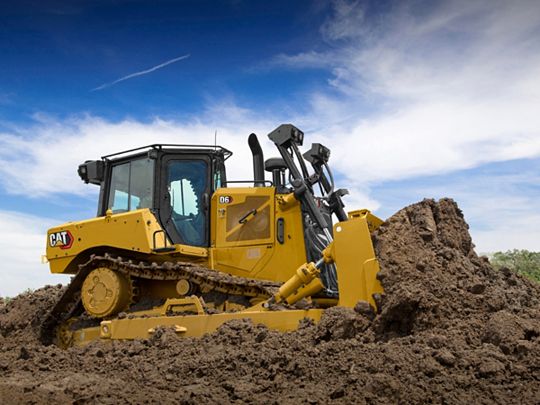

D6 Dozer
The Cat® D6 dozer helps you move material at a lower cost with a fully automatic transmission, outstanding fuel efficiency and reduced service/maintenance costs. The broadest range of technology features in the industry work together seamlessly to help you make the most of your equipment investment. The D6 is legendary versatility you have come to trust, with added performance and efficiency to help you take your business to the next level.
EFFICIENCY AND PRODUCTIVITYTest
- Up to 20% better fuel efficiency¹.
- Use up to 13% less fuel².
- Fully automatic 4-speed transmission continuously adjusts for maximum efficiency and power to the ground without added operator input.
- Full auto shift up and down entire working range to maximize fuel efficiency.
- Lower greenhouse gas emissions – up to 13% less CO2.
¹Material moved per gallon/liter of fuel
² Gallons/liters per hour
MOVE MORE WITH LESS FUELTest
- Move up to 20% more material per gallon/liter of fuel used.
- Move up to 5% more material per hour.
- Fully redesigned with updated configurations so you can build just the right machine the work you do.

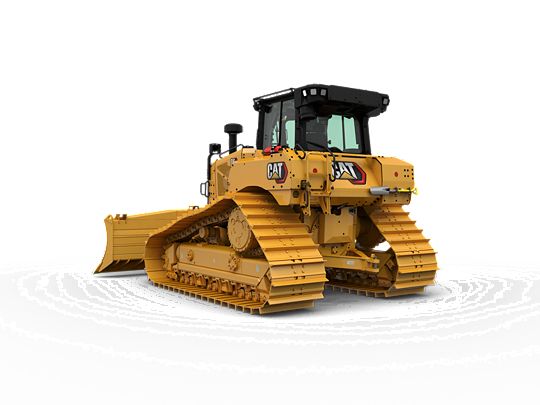

- Purpose-built VPAT tractor features a new frame and optimized balance for grading - no need for rear attachment.
- New LGP VPAT design, with 36-inch (915 mm) centered shoes, offers 35 kPa (5 psi)ground pressure.

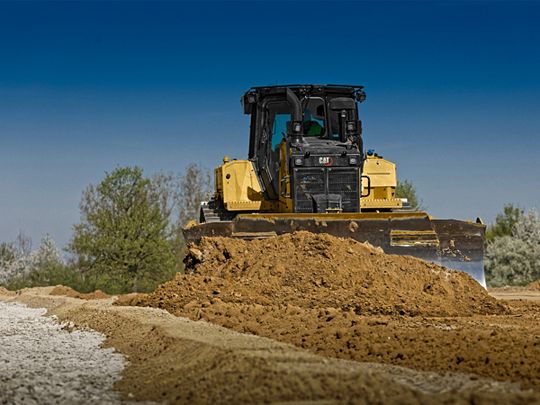

- Wider blade on the LGP VPAT for Powerful Efficiency high-speed grading.

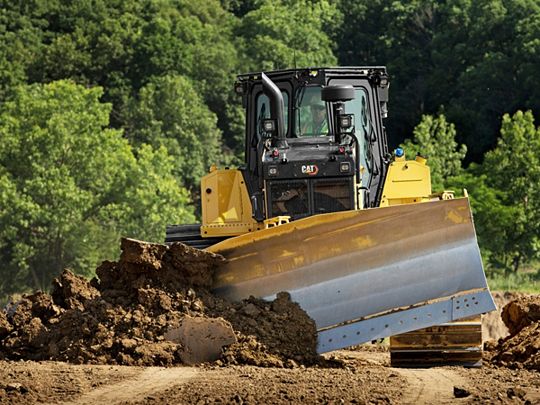

- Class-leading VPAT range of motion for improved performance, especially when trenching or backfilling.
- VPAT blade remains level when angled for smoother grade.

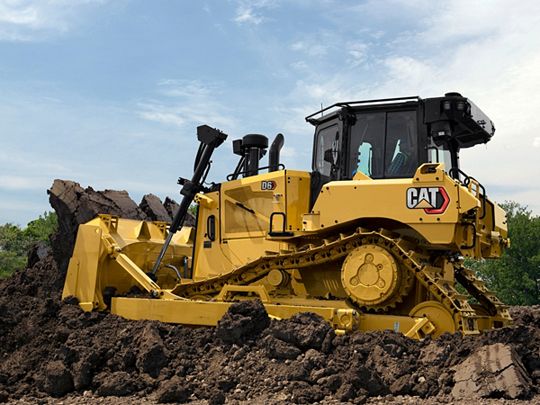

- More robust push arm dozer for heavy applications with larger SU blade capacity.
- Optional Performance Cutting Edges (SU blades) increase blade payload by up to 35% compared to standard cutting edges.
- New 10-roller undercarriage option designed for smoother grades at higher speeds, even in difficult surfaces like sand and gravel.
UNPRECEDENTED TECHNOLOGY CHOICESTest
- Cat Grade with Slope Assist™ automatically maintains operator’s pre-established blade position without a GPS signal – no additional hardware or software needed.
- Factory integrated Cat Grade with 3D uses GPS to control the blade so you can get to design plan faster.
- Cat Grade with 3D has no masts: small antennas are integrated into the cab roof and GPS receivers are mounted inside the cab for better protection.
- Grade operator interface is intuitive and easier to use: 10-inch (254 mm) touchscreen, Android OS platform, operates like a smart phone.
- Slope Indicate shows machine cross-slope and fore/aft orientation right on the main display to help operators with slope work.
- Attachment Ready Option (ARO) comes from the factory with key sensors and wiring installed so you can easily upgrade to fully integrated grade control or blade mounted system.
- All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica.
- Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
- Premium cab package includes remote control ready wiring, allowing for dealer installation of a plug-and-play roof-mounted remote control unit.
- Cat Command for Dozing* provides a remote control solution for enhanced safety and greater productivity and is offered as Command Console for line-of-sight (LOS) remote control, or with a Command Station for non-line-of-sight (NLOS) remote control.
BOOST OPERATOR EFFICIENCYTest
- New assist features work behind the scenes to help make machine operation easier.
- Make the most of every pass with Blade Load Monitor to help you optimize blade capacity.*
- Stable Blade works seamlessly with operator inputs to help produce a smoother surface.
- Traction Control automatically reduces track slip to save you time, fuel and track wear.*
- AutoCarry automates blade lift to help you maintain consistent blade load and help reduce track slip.*
DESIGNED FOR OPERATORSTest
- Completely redesigned cab for a whole new standard in visibility, comfort, productivity.
- New 10-inch touchscreen display with easy-to-use operator interface.
- Grade Control display and main display positions can be swapped.
- Application Profile saves preferred machine settings.
- Distributed cab heating/cooling circulates air more effectively around the operator and helps reduce window fogging/frosting.
- Viscous cab mounts reduce vibration for greater operator comfort.
- Wider air suspension seat has multiple adjustments for personalized comfort.
- Entire armrest adjusts forward and backward independent of the seat.
- Detented thumbwheel on the steering control allows easy speed setting changes
- More storage spaces throughout the cab.
LOWER MAINTENANCE COSTSTest
- Up to 9% lower maintenance cost – designed specifically to save you money with updated components, longer service intervals, fewer scheduled maintenance tasks.
- Grouped service points and modular components with easy access to save you routine maintenance time.
- Fewer filters and service points save you time and money on routine maintenance
- Cab air filter replacement extended to 500 hours.
- Standard reversing fan extends the time between core clean-outs.
- 30-minute cab removal, if needed.
- Modular, self-contained HVAC unit is easier to service.
LONG TERM VALUE AND DURABILITYTest

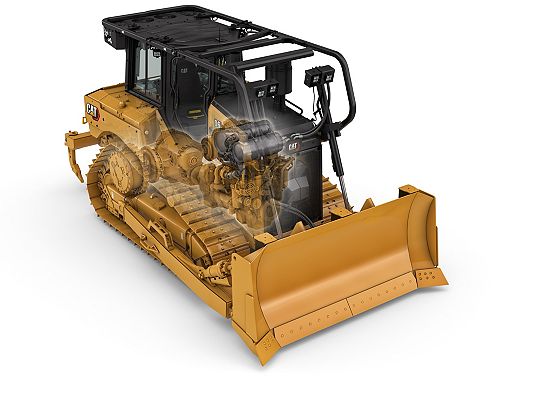

- Cat C9.3B engine eliminates Exhaust Gas Recirculation (EGR) system for greater reliability; simplified with a single engine Electronic Control Module (ECM) and improved engine air filter.
- Redesigned fuel system provides greater reliability and more accurate fuel delivery.
- Heavy Duty Extended Life undercarriage – HDXL with DuraLink™ – features Positive Pin Retention pins and link improvements for up to 20 percent more seal life in high impact conditions.
- New Cat Abrasion undercarriage is your lowest cost-per-hour solution for high abrasion and low impact jobsites. The new design offers double the seal life and eliminates bushing turns, reducing your costs up to 50 percent per hour compared to traditional undercarriage. Reduces link scalloping for smoother operation.
- Common structures for Heavy Duty and Cat Abrasion undercarriage enable changes from one to the other.

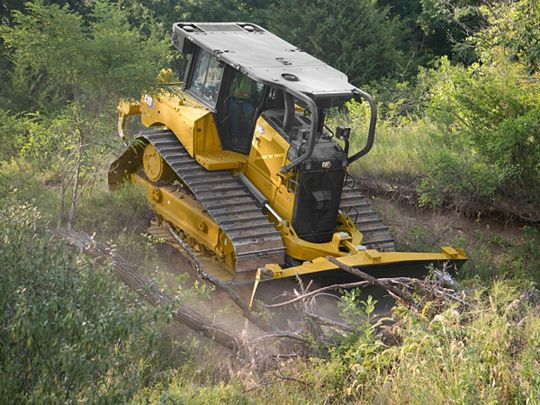

- Purpose-built Waste and Forestry arrangements.
BUILT-IN SAFETY FEATURESTest
- Approximately 15% more glass area and Integrated ROPS offers added visibility.
- Standard integrated High Definition (HD) rear view camera in the primary display.
- Hood design and alignment of the exhaust and precleaner provide a better view to the front of the tractor.
- Bluetooth microphone gives you hands-free access to your mobile phone.
- Standard ladder at the back of the machine for convenient access for fuel fill, window cleaning and maintenance.
- Ground-level access to optional fast fuel fill.
- Grab rail on both sides of cab roof and tie offs provide added safety.
- Improved cab filtration for cleaner operator environment.
- Optional integrated LED warning lights.
WASTE HANDLING PERFORMANCETest
- Improved sealing throughout the machine helps keep dust and debris out.
- Waste cab has impact-resistant polycarbonate doors, eliminating the need for door screens.
- Specialized guarding and seals throughout the machine help protect major components from impact and airborne debris.
- Multi-layer final drive guards, including a labyrinth-style guard with 90-degree turns, help keep dirt and debris away from the Duo-Cone™ seal to protect final drive oil.
- Pivot shaft seal guards help prevent debris from entering and damaging seals.
- Striker bars help prevent debris from damaging the machine.
- Tilt cylinder with rotating bushing type design help wrapping materials to roll off hoses.
- Heavy duty hinged radiator guard protects radiator and fan from penetration by material coming straight in or from under the blade.
- Cooling system designed for high debris environments, with automatic reversing fan and swing-out cleanout access.
- Hinged heavy duty belly guard for easy cleaning and to keep debris out.
- Lights mounted up and away from main debris area for protection, while still giving you plenty of light on the work area. An optional 12-light LED package provides 360-degree coverage.
- Powered precleaner is integrated and increases the cab filter change interval to 1,000 hours.

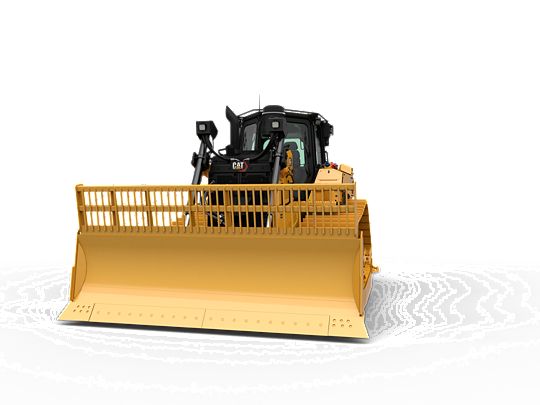

- Landfill blades and center-hole track shoes help you optimize your waste handler for the job.
- Laminated thermal shields and insulated Clean Emissions Module.
Engine
| Engine Model | Cat C9.3B |
|---|---|
| Power - Net | 161kW215HP |
| Net Power - Rated - ISO 9249/SAE J1349 | 161kW215HP |
| Net Power - Rated - ISO 9249/SAE J1349 (DIN) | 219mhp219mhp |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 4 Final |
| Build Number | 20B |
| Note (1) | Rated horsepower at 2,200 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011. |
| Note (2) | All non-road Tier 4 Interim and Final, Stage IIIB, IV and V and Korea Tier 4 Final diesel engines are required to use only ultra-low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations. |
| Note (3) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
| Note (4) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full D6/D6 XE Technical Specifications. |
Weights
| Operating Weight | 23012kg50733lb |
|---|
Transmission
| Power Train | Fully Automatic 4-Speed Powershift |
|---|
Service Refill Capacities
| Fuel Tank | 341l90gal (US) |
|---|---|
| DEF Tank | 28l7.4gal (US) |
D6 Push Arm
| Operating Weight | 22130kg48788lb |
|---|---|
| Ground Pressure | 54kPa7.9psi |
| Width of Standard Shoe | 610mm24in |
| Blade | Semi-Universal (SU) |
| Blade Capacity | 5.7m³7.5yd³ |
D6 LGP (30-in) Push Arm
| Operating Weight | 22870kg50420lb |
|---|---|
| Ground Pressure | 45kPa6.5psi |
| Width of Standard Shoe | 760mm30in |
| Blade | Semi-Universal (SU) |
| Blade Capacity | 5.8m³7.6yd³ |
D6 LGP (36-in) Push Arm
| Operating Weight | 23911kg52715lb |
|---|---|
| Ground Pressure | 36kPa5.2psi |
| Width of Standard Shoe | 915mm36in |
| Blade | Straight |
| Blade Capacity | 3.8m³5yd³ |
D6 VPAT
| Operating Weight | 22275kg49108lb |
|---|---|
| Ground Pressure | 49kPa7.1psi |
| Width of Standard Shoe | 610mm24in |
| Blade | VPAT |
| Blade Capacity | 4.1m³5.4yd³ |
D6 LGP (30-in) VPAT
| Operating Weight | 23012kg50733lb |
|---|---|
| Ground Pressure | 40kPa5.9psi |
| Width of Standard Shoe | 760mm30in |
| Blade | VPAT |
| Blade Capacity | 4.5m³5.9yd³ |
D6 LGP (36-in) VPAT
| Operating Weight | 23547kg51912lb |
|---|---|
| Ground Pressure | 34kPa5psi |
| Width of Standard Shoe | 915mm36in |
| Blade | VPAT |
| Blade Capacity | 4.9m³6.5yd³ |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. |
|---|
