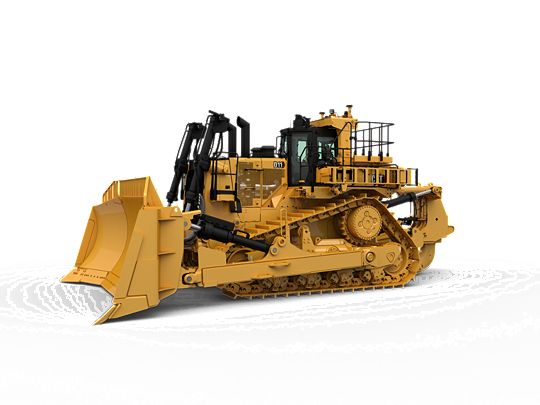

D11 Dozer
The new Cat® D11 Dozer delivers higher productivity at lower cost. The latest technology provides operator with full command of the dozer for safe and efficient operation. This means you can comfortably move more material in less time, at a lower cost per ton, for a faster payback on your investment. This intelligent dozer has a sophisticated machine protection strategy, as well as a machine guidance system which further drives higher productivity and lower cost.
Greater Operator Safety, Comfort and ControlTest
- Improved access ladder with engine-off raise and lower capability.
- Easier cab access with ladder installed. Cab door swing option allows left- or right-side opening.
- Access lighting can be controlled from the cab or the ground-level electrical center. Delayed egress lighting allows exiting the machine with lighting.
- Strategically located mirrors and available rearview cameras, including 360 vision system.
- New operator station with high-definition touchscreen displays and new electronic architecture that’s ready for the future.
- Improved rearward visibility to ripper shank.
- Engineered and tested fire-suppression system.
- Engine idle – shutdown.
- Engine overspeed protection.
- Brake temperature estimator – forewarns the operator before brakes overheat.
- Continuous fluid monitoring system – monitors all fluids during operation and warns operator.
- Enhanced Auto Shift (EAS), AutoCarry™ and Auto Rip provide total control of the machine for efficient operation.
- “OK to Start” fluid level monitoring for all fluid compartments enables final fluid verification before startup.
- Anchorage points strategically located for safety tie-off during service and maintenance.
Exceptional Durability – Engineered to be Rebuilt for Multiple Lives and Lowest TCOTest
- Redesigned case and frame for longer life.
- Larger equalizer bar with improved bearings.
- Robust track roller frame – carrier roller ready.
- Ripper and blade pin bores with replaceable bearings.
- Replaceable push-arm trunnion bearing inserts.
- Proven elevated sprocket undercarriage design provides longer component life.
Designed for Ease of Maintenance and Repair to Minimize Downtime and CostTest
- 30 percent larger engine oil sump capacity extends 500-hour PM intervals in challenging environments.
- Auto Lube system with ground-level fill and automatic shutoff capability.
- Replaceable blade push-arm trunnion bearing inserts.
- Continuous fluid monitoring on all compartments, including direct fluid monitoring of hydraulic tank and pivot shaft reservoir.
- Remote steering clutch and brake pressure disconnects relocated from under the cab to outside of cab for ease of access.
- Ground-level electrical center features:
– Access lighting switch
– Machine control lockout – prevents movement during service
– Engine shutdown switch
– Access ladder raise-and-lower switch (if equipped)
– Remote-control mode switch (if equipped) - Ground-level service fluid change for coolant, hydraulic, engine and power train oil.
- New single-plane cooling system for ease of cleaning.
- Robust variable piston pumps for the new load-sensing hydraulic system runs cooler for longer component and seal life.
- Larger and more robust equalizer bar with long-life fiber-wound bearing.
- Touchscreen primary display in operator station provides machine health information.
The Latest Technology Delivers Optimum Productivity and EfficiencyTest
- Up to six percent lower cost per ton with improvements in productivity, fuel efficiency and lower M&R.
- High-horsepower reverse for faster cycle times and greater productivity – up to eight percent.
- Stator clutch torque divider for improved driveline efficiency.
- High-efficiency load-sensing hydraulic system for improved hydraulic implement response and fuel efficiency.
- Combined load-sensing hydraulics and stator clutch torque divider deliver up to eight percent better fuel efficiency.
- Improved cooling system for better heat rejection and easier cooling core cleanout.
- Improved reversing fan function for faster reverse flow radiator cleanout.
- Extended blade pitch option for improved productivity.
Engine - U.S. EPA Tier 4 Final/EU Stage V
| Engine Model | Cat® C32 |
|---|---|
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 634kW850HP |
| Displacement | 32.1l1959in³ |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 712kW955HP |
| Note (1) | *Excludes all fan losses. |
| Note (2) | Engine ratings apply at 1,800 rpm. |
| Note (3) | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required. |
Weights
| Operating Weight | 104236kg229800lb |
|---|---|
| Operating Weight - Carrydozer | 113700kg250665lb |
| Note (1) | D11 Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator. |
| Note (2) | D11 CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator. |
Blades
| Semi-Universal (SU)* Capacity | 27.2m³35.6yd³ |
|---|---|
| Semi-Universal (SU)* Width Over Endbits | 5584mm219.8in |
| U-Blade Capacity | 34.4m³45yd³ |
| U-Blade Width | 6340mm249.6in |
| Reclamation Universal - Blade capacity (SAE J1265) | 42m³55yd³ |
| Reclamation Universal - Width with blade (over end bits) | 6395mm251.8in |
| Carry Dozer - Blade capacity (SAE J1265) | 43.6m³57yd³ |
| Carry Dozer - Width with blade (over end bits) | 6704mm263.9in |
Engine - U.S. EPA Tier 2 Equivalent
| Engine Model | Cat® C32 |
|---|---|
| Displacement | 32.1l1959in³ |
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 634kW850HP |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 714kW957HP |
| Note (1) | *Excludes all fan losses. |
| Note (2) | Engine ratings apply at 1,800 rpm. |
| Note (3) | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required. |
Fuel Tank Capacities
| Fuel Tank - Total Volume | 1895l500gal (US) |
|---|---|
| Fuel Tank - Usable Volume | 1800l475gal (US) |
Hydraulic Controls
| Pump Type | Variable displacement piston pump |
|---|---|
| Combined Pump Output - Implement | 670l/min177gal/min |
Undercarriage
| Shoe Type | Extreme Service |
|---|---|
| Width - Shoe | 710mm28in |
| Width - Shoe - CD | 915mm36in |
| Shoes/Side | 41 |
| Grouser Height | 102mm4in |
| Pitch | 318mm12.5in |
| Ground Clearance* | 777mm30.6in |
| Track Gauge | 2896mm114in |
| Length - Track on Ground | 4444mm175in |
| Ground Contact Area | 6.3m²9781in² |
| Ground Contact Area - CD | 8.1m²12605in² |
| Track Rollers/Side | 8 |
| Number of Carrier Rollers | 1 per side (optional) |
Transmission
| 1.0 Forward | 4km/h2.5mile/h |
|---|---|
| 2.0 Forward | 7km/h4.4mile/h |
| 3.0 Forward | 12.2km/h7.6mile/h |
| 1.0 Reverse | 4.8km/h3mile/h |
| 2.0 Reverse | 8.5km/h5.3mile/h |
| 3.0 Reverse | 14.7km/h9.1mile/h |
| Drawbar Pull - 3 Forward | 205.8kN46250ft·lbf |
| Drawbar Pull - 1 Forward | 659.2kN148200ft·lbf |
| Drawbar Pull - 2 Forward | 366.1kN82300ft·lbf |
Ripper - Single Shank
| Maximum penetration force * (shank vertical) | 294kN66000lb |
|---|---|
| Maximum penetration depth (standard tip) | 1612mm63.5in |
| Pryout Force | 661kN148510lb |
Ripper - Single Shank, Deep Ripping
| Maximum penetration force * (shank vertical) | 294kN66110lb |
|---|---|
| Maximum penetration depth (standard tip) | 2172mm85.5in |
| Pryout Force | 661kN148510lb |
Ripper - Multi-Shank, Adjustable Parallelogram
| Overall Beam Width | 3330mm131.1in |
|---|---|
| Maximum Penetration Force - Shank Vertical | 344kN77350lb |
| Maximum Penetration - Standard Tip | 1100mm43.3in |
| Pry-Out Force - Multi-Shank Ripper with One Tooth | 648kN145640lb |
Dimensions - D11 Carrydozer
| Width at Outside of Track (710 mm Track Shoe) | 3806mm149.8in |
|---|---|
| Length with SU-Blade** - No rear attachment | 8765mm345.1in |
| Overall Length SU-Blade and SS Ripper** | 10712mm421.7in |
Service Refill Capacities
| Cooling System | 177l46.8gal (US) |
|---|---|
| Cooling System Refill - Tier 2 Equivalent Engine | 158l41.7gal (US) |
| Engine Crankcase | 133l35.1gal (US) |
| Power Train | 454l120gal (US) |
| Power Train - Refill Volume | 391l103.3gal (US) |
| Final Drive - Each | 47l12.4gal (US) |
| Roller Frames - Each | 94l24.8gal (US) |
| Hydraulic Tank | 160l42.2gal (US) |
| Hydraulic System Tank and Chassis | 245l64.7gal (US) |
| Hydraulic System Chassis + Blade and Ripper (Standard) | 445l117.6gal (US) |
| Hydraulic System Chassis + Blade and Ripper (Carrydozer) | 540l143.4gal (US) |
Standards
| ROPS | Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008 |
|---|---|
| FOPS | Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II |
| Sound (1) | The exterior sound pressure level for the standard machine (ISO 6396:2008) is 116 dB(A) (sound suppressed). |
| Sound (2) | The operator equivalent sound pressure level (ISO 6396:2008) is 78 dB(A) (sound suppressed). |
Dimensions - D11
| Ground Clearance* | 798mm31.4in |
|---|---|
| Track Gauge | 2896mm114in |
| Width at Outside of Track (710 mm Track Shoe) | 3606mm142in |
| Height (ROPS/canopy)* | 4723mm185.9in |
| Length of Track on Ground | 4444mm175in |
| Length with SU-Blade** - No rear attachment | 8579mm337.8in |
| Overall Length SU-Blade and SS Ripper** | 10525mm414.4in |
| Note | *Includes grouser height for total dimensions on hard surfaces. |
Air Conditioning System
| Note (1) | The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warning Potential = 1430). The system contains 2.1 kg (4.6 lb) of refrigerant which has a CO2 equivalent of 3.003 metric tonnes (3.31 tons) |
|---|
