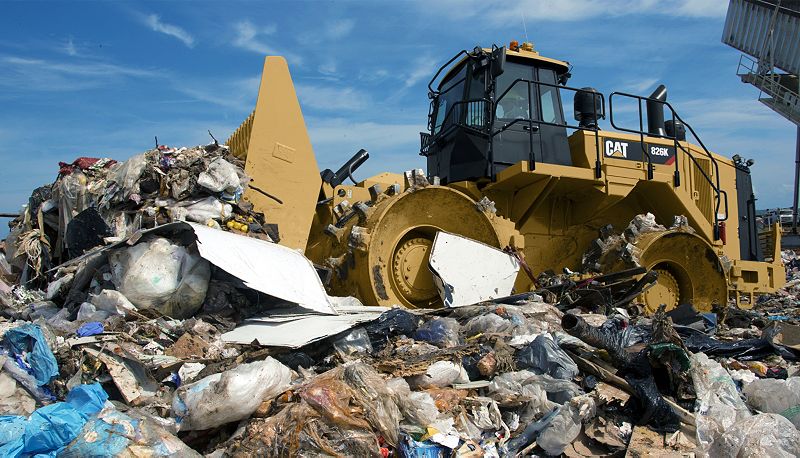

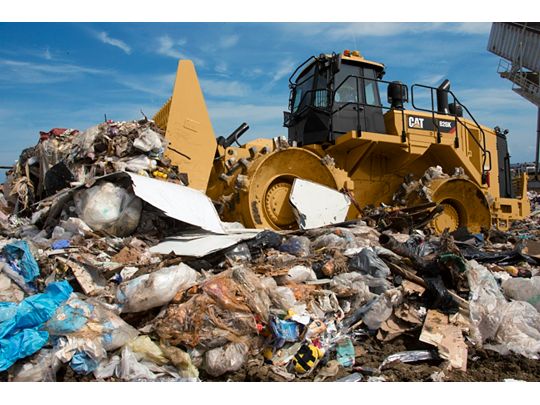

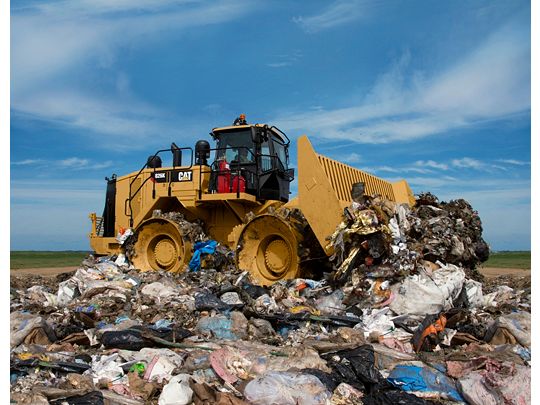

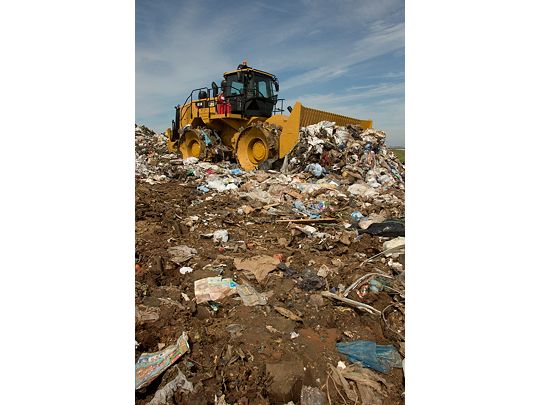

826K Landfill Compactor
Cat Landfill Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1978, the 826 has been the industry leader for over 35 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 826K continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
Documents
POWERFUL EFFICIENCYTest
- Eco Mode allows the machine to go into auto shift mode when not operating at maximum torque, optimizing performance and saving fuel.

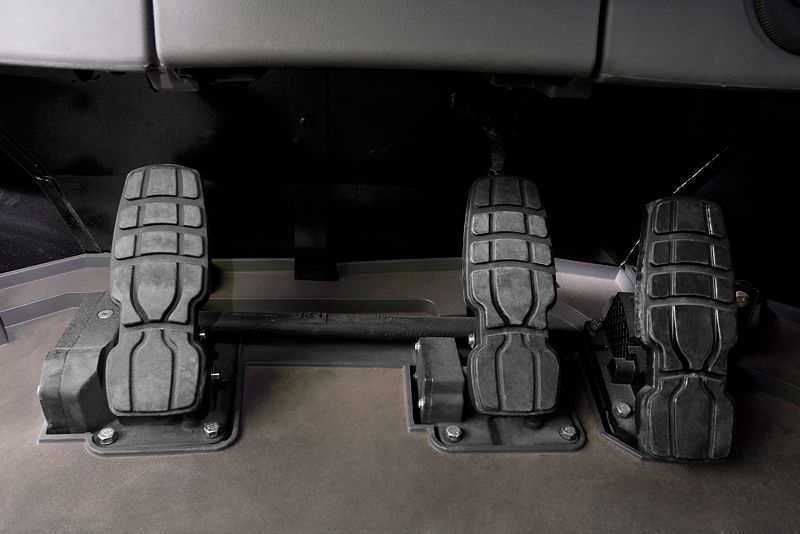

- The left pedal acts as a brake, transmission neutralizer and an engine decelerator to override the engine speed selected by the throttle lock. Allows the operator to slow speeds when the throttle lock is engaged and to return to throttle lock without pressing a resume or set button.
- Electro hydraulic controls increase productivity with responsive implements feature. Operate comfortably with easy-to-use soft-detent controls.
- Steering system provides confident machine operation and precise control enabled by the 826K's load-sensing hydraulic steering system.
- Increased efficiency with variable displacement piston pumps that give operators precise positioning for easy operation in tight areas with 43 degree articulation in each direction.
- Steering and Transmission Integrated Control System (STIC™) enhances operator comfort by integrating steering and transmission control functions in a single lever. Includes finger-controlled gear selection.
LONG TERM VALUE AND DURABILITYTest
- Designed and made with purpose-built structures to remain safe and durable for the long run.
- Long-life-designs, materials and robotic welding ensure multiple life cycles and ability to withstand the toughest conditions.

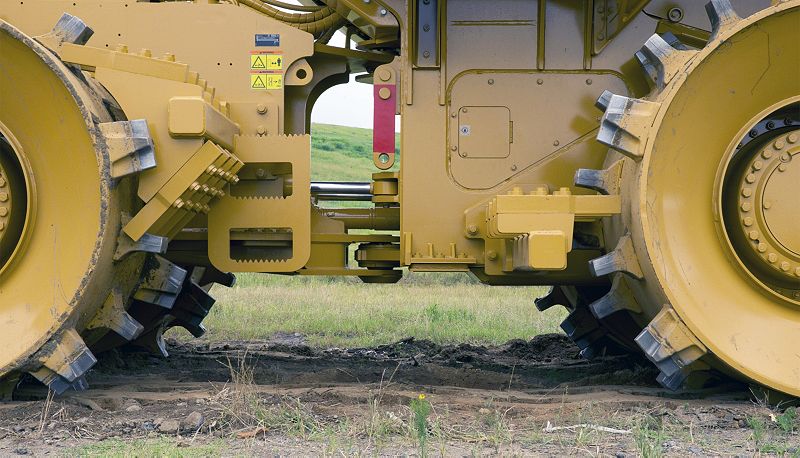

- Full box-section rear frame resists torsional shock and twisting forces.
- Heavy-duty steering-cylinder mounts efficiently conduct steering loads into the frame.
PERFORMANCE WITH LESS FUELTest
- Single Clutch Speed Shifting (SCSS) delivers consistent, smooth shifting and efficiency.
- Strategic use of metallurgy and heat treating ensures long-life gears.
- The Cat C15 engine is designed for maximum fuel efficiency and increased power density.
- Two engine options are available to meet Tier 4 Final/Stage IV or Tier 3/Stage IIIA equivalent emission standards. (depending upon market).
- Fully electronic engine controls integrate with entire machine systems to optimize fuel economy.
- Engine idle shutdown reduces fuel waste during idling periods.
- Delayed Engine Shutdown maximizes durability.

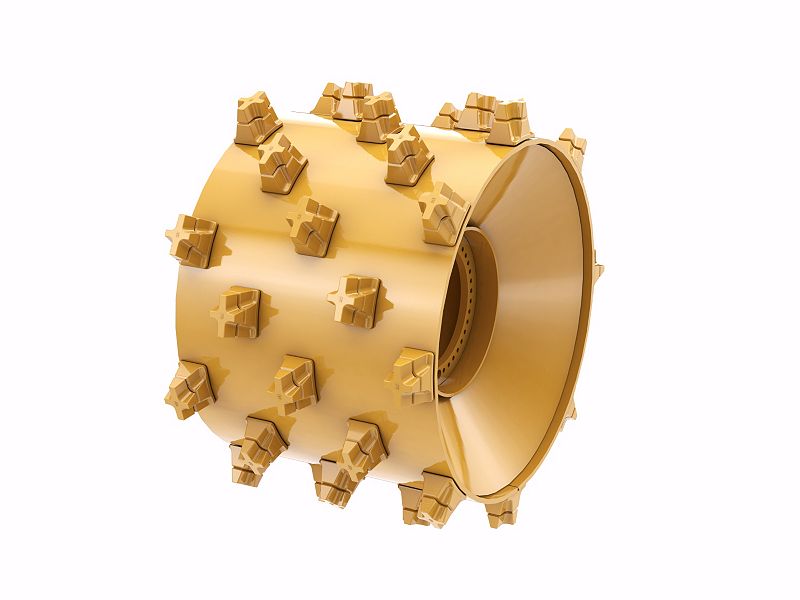

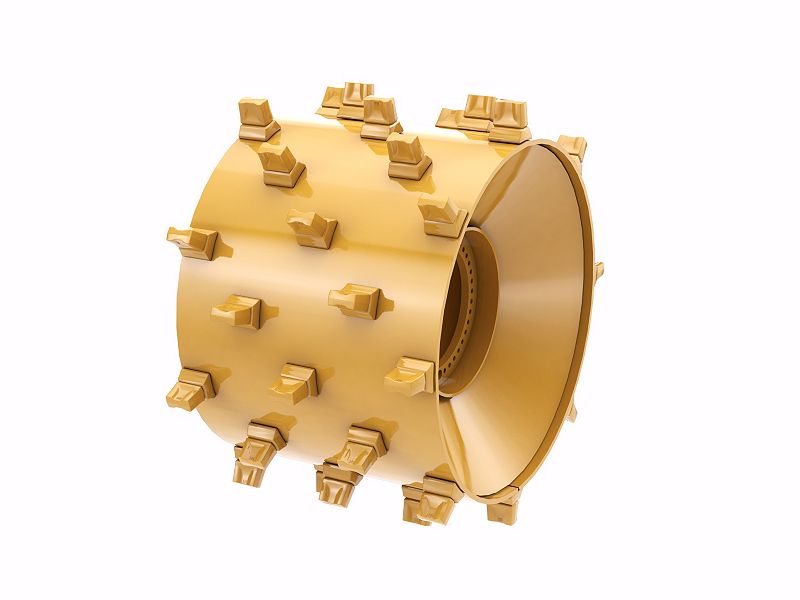

WHEEL TIPS BUILT TO PERFORMTest
- New long-life paddle and plus design tip options.
- Up to 40% longer life.
- Purpose designed for landfills.
- Improved machine performance.
- Improved traction.
- Select paddle tip for traction and fuel economy.
- Select plus tip for increased side-slope stability.
- Select combination of both to optimize performance in your conditions.
OPERATOR COMFORT AND CONTROLTest
- Pressurized cab sits on isolation mounts improving comfort and reducing sound.
- Cab features a convenient floor storage tray/lunch box.

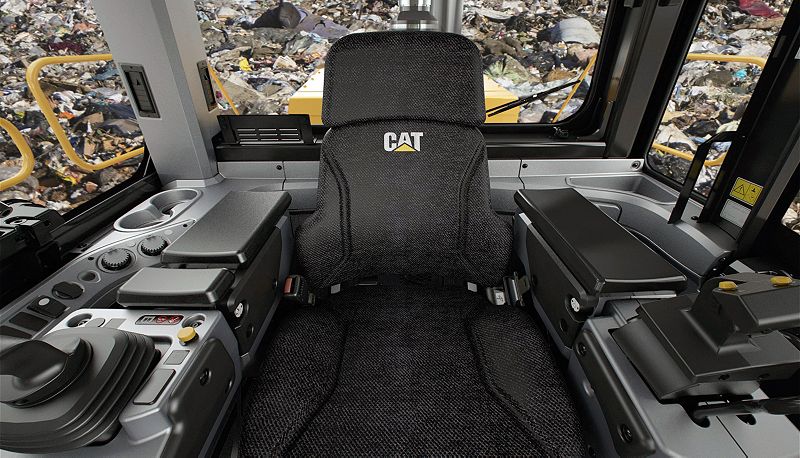

- Cat Comfort Series III Seat includes mid-back design, thick, contoured cushions, air suspension, six-way adjustments, and a seat-mounted implement pod and STIC steer that moves with the seat for optimal control.
- Control panel gives operators the information and controls for safer and time-saving settings.
- STIC control simplicity provides maximum responsiveness and control with STIC that combines directional selection, gear selection and steering into a single lever.
PRODUCTIVITY WITH TECHNOLOGYTest
- Cat Compaction Control system uses Machine Drive Power (MDP) technology to measure rolling resistance and correlates it with landfill compaction. 3D mapping indicates where to work and when layers are at optimum density. The system eliminates voids, optimizes cell space and documents results.
- VisionLink 3D Project Monitoring provides managers with detailed compaction analysis to more effectively monitor and manage operations.
- DETECT technologies help keep people and equipment safe by keeping operator aware of the work area and by monitoring and reporting unsafe conditions, like avoidance zones.
- COMPACT technologies combine advanced compaction measurement, in-cab guidance and reporting capabilities to help you consistently meet compaction targets fast, uniformly, and in fewer passes.
- Rear vision camera greatly enhances visibility behind the machine to help the operator work with greater confidence and at peak potential while keeping people and assets safe.
- Product Link is deeply integrated into your machine, giving you access to information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface. Helps effectively manage fleet and lower operating costs.
BUILT-IN SAFETY FEATURESTest

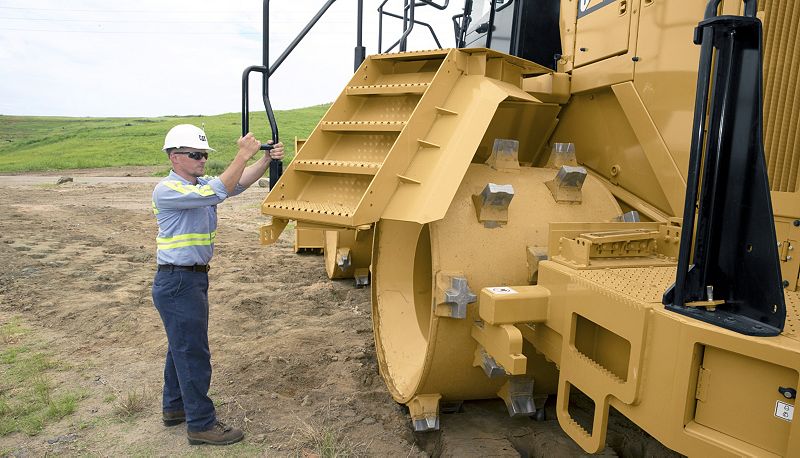

- Railings, ladders and non-slip surfaces enhance technician and operator safety.
- Rearview camera with in-cab monitor increases operator awareness around the machine.
- Reduced vibrations to the operator with isolated cab mounts and seat mounted implement and steering controls.
- Low interior sound levels.
- Pressurized cab with filtered air.
- Engine and power train guards prevent trash build-up and shield components.
- Front frame guards prevent trash build-up inside the frame and protects components and hydraulic lines.
- Axle wrapping and seal guarding prevents material from wrapping and binding around the axles and assists when cleaning is needed.
- Transmission oil tube is guarded to resist damage from debris.
- The fuel tank is positioned away from the debris in the front frame and is easily accessed.
- High radiator air inlet with screen helps prevent trash from entering the radiator area, maintaining proper airflow and aiding debris to fall off.
- Striker bars and optional cleaner fingers are located in front and behind the rear wheels and behind the front wheels. Striker bars help to keep wheels free of debris to assist the wheel tips in maintaining good compaction.
- In cohesive material or severe packing conditions, optional cleaner fingers are available to further assist in keeping the wheel tips clean.
- Roof extends past the cab doors and windows to minimize debris build up.
- Suction fan allows ambient air to cool, enhancing cooling capacity. It also pressurizes the engine compartment, preventing trash build up.
REDUCE ENVIRONMENTAL IMPACTTest
- Engine idle shutdown saves fuel by avoiding unnecessary idling.
- Reduce waste to the environment with maintenance-free batteries.
- The 826K is built to be rebuilt, maximizing machine life, and minimizing environmental impact. Get the most from your investment, with our sustainable options including Cat Reman and Certified Rebuild programs. With these programs, remanufactured components deliver cost savings of 40 to 70 percent, lowering operating costs while also reducing waste and minimizing the need for raw materials.
TOP-TIER SERVICE AND SUPPORTTest
- Safe and convenient service via ground level or platform access to daily service points.
- Swing-out doors on both sides of engine compartment provide easy access to daily service checks.
- Ecology drains for ease of service and prevention of spills.
- Reduce downtime with VIMS™ system notifications so operators and technicians can resolve problems before failure.
- Sight gauges mean quick visual inspection and minimize fluid contamination.
- Optional swing-out doors on both sides provide convenient access to daily service check points. Engine compartment lighting aids visibility.
- New ground level service area includes an electrical disconnect, emergency engine shutdown and stairway light switch.
- Cat dealers keep you running with preventive maintenance programs, maintenance contracts, best-in-class parts availability and operator training support.
Weights
| Operating Weight | 40917kg90207lb |
|---|
Engine
| Gross Power | 324kW435HP |
|---|---|
| Net Power | 302kW405HP |
| Engine Model | C15 Cat® |
| Bore | 137.2mm5.4in |
| Stroke | 171.4mm6.7in |
| Displacement | 15.2l927.6in³ |
| High Idle Speed | 2300r/min2300r/min |
| Net Power - Converter Drive - Torque Rise | 8.5%8.5% |
| Rated Power (Net SAE J1349) | 302kW405HP |
| Maximum Altitude - Without Derating (Tier 4 Final/Stage IV) | 2834m9298ft |
| Net Power - Direct Drive - Torque Rise | 33%33% |
| Emissions | Tier 4 Final/Stage IV or Tier 3/Stage IIIA equivalent |
| Low Idle Speed | 800r/min800r/min |
| Net Power - Direct Drive - Gross Power | 307kW412HP |
| Net Power - Converter Drive - Gross Power | 324kW435HP |
| Maximum Net Torque - 1,300 rpm | 2005N·m1478.8ft·lbf |
| Rated Power (Net ISO 9249) | 302kW405HP |
| Maximum Altitude - Without Derating (Tier 3/Stage IIIA) | 2773m9098ft |
Axles
| Front | Planetary - Fixed |
|---|---|
| Oscillation Angle | ±5° |
| Rear | Planetary - Oscillating |
Service Refill Capacities
| Fuel Tank | 782l206.6gal (US) |
|---|---|
| Cooling System | 116l30.6gal (US) |
| Transmission | 66l17.4gal (US) |
| Differential - Final Drives - Front | 100l26.4gal (US) |
| Differential - Final Drives - Rear | 110l29.1gal (US) |
| Diesel Exhaust Fluid Tank (Tier 4 Final/Stage IV) | 32l8.5gal (US) |
| Hydraulic Tank Only | 134l35.4gal (US) |
| Engine Crankcase | 34l9gal (US) |
Dimensions (Approximate)
| Height - Top of Cab with A/C | 4568mm14.99ft |
|---|---|
| Height - Top of Exhaust Pipe | 4439mm14.56ft |
| Height - Top of Hood | 3312mm10.87ft |
| Ground Clearance - Bumper | 960mm3.15ft |
| Hitch to Centerline of Front Axle | 1850mm6.07ft |
| Wheel Base | 3700mm12.14ft |
| Width - Over Wheels | 3800mm12.47ft |
| Centerline of Rear Axle to Edge of Counterweight - Including Rear Radiator Guard | 3096mm10.16ft |
| Height - Top of Cab with Strobe | 4765mm15.63ft |
| Height - ROPS/Canopy | 4274mm14.02ft |
| Centerline of Rear Axle to Edge of Counterweight - No Rear Radiator Guard | 2860mm9.38ft |
| Turning Radius - Inside of Wheels | 2797mm9.18ft |
| Length - With Blade on Ground - Straight Blade - Including Rear Radiator Guard | 8715mm28.59ft |
| Ground Clearance | 642mm2.11ft |
Transmission
| Travel Speed - Reverse - Maximum 1st | 6.9km/h4.3mile/h |
|---|---|
| Travel Speeds - Reverse - Maximum Eco Mode | 7.4km/h4.6mile/h |
| Travel Speed - Forward - Maximum 2nd | 10.6km/h6.6mile/h |
| Travel Speed - Reverse - Maximum 2nd | 12.2km/h7.6mile/h |
| Travel Speeds - Forward - Maximum Eco Mode | 6.9km/h4.3mile/h |
| Travel Speed - Forward - Maximum 1st | 6km/h3.7mile/h |
| Transmission Type | Planetengetriebe – Lastschaltgetriebe – ECPC (Electronic Clutch Pressure Control, Elektronische Kupplungsdrucksteuerung) |
Hydraulic System
| Main Relief Pressure | 24100kPa3495psi |
|---|---|
| Pump Flow at 1,950 rpm | 117l/min30.9gal/min |
| Bore | 120mm4.7in |
| Stroke | 1070mm42.1in |
| Lift System | Double Acting Cylinder |
| Maximum Supply Pressure | 24100kPa3495psi |
Braking System
| Parking Brake | Drum and Shoe, Spring Applied, Hydraulic Released |
|---|
Cab - Standard
| Machine Sound Power Level (ISO 6395) | 113dB(A)113dB(A) |
|---|---|
| Operator Sound Pressure Level - ISO 6396 | 73dB(A)73dB(A) |
Cab - Suppression
| Machine Sound Power Level (ISO 6395) | 110dB(A)110dB(A) |
|---|---|
| Operator Sound Pressure Level - ISO 6396 | 72dB(A)72dB(A) |
Operating Specifications
| Maximum Operating Weight (Tier 4 Final/Stage IV) - Multiple Blade and Wheel Offerings | 40917kg90207lb |
|---|---|
| Maximum Operating Weight (Tier 3 Final/Stage IIIA equivalent) Multiple Blade and Wheel Offerings | 40454kg89186lb |
Hydraulic System - Steering
| Stroke | 576mm22.7in |
|---|---|
| Vehicle Articulation Angle | 86°86° |
| Bore | 114.3mm4.5in |
| Maximum System Flow | 170 L/min @ 1,950 rpm (44.9 gal/min @ 1,950 rpm) |
| Steering Pressure Limited | 24000kPa3481psi |
| Steering System - Circuit | Double Acting - End Mounted |
| Steering System - Pump | Piston - Variable Displacement |
Wheels and Tips
| Attachment - Wheels: 1200 mm (47.25 in) Paddle and Plus Tips - Drum Width | 1200mm3.94ft |
|---|---|
| Attachment - Wheels: 1200 mm (47.25 in) Plus Tips - Drum Diameter | 1610mm5.28ft |
| Attachment - Wheels: 1200 mm (47.25 in) Plus Tips - Weight | 9980kg22002lb |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle Tips - Tips per Wheel | 30 |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle Tips - Drum Width | 1200mm3.94ft |
| Attachment - Wheels: 1200 mm (47.25 in) Plus Tips - Outside Diameter | 1971mm6.47ft |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle and Plus Tips - Weight | 9582kg21125lb |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle Tips - Width over Drums | 3800mm12.47ft |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle Tips - Weight | 9317kg20540lb |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle and Plus Tips - Drum Diameter | 1610mm5.28ft |
| Attachment - Wheels: 1200 mm (47.25 in) Plus Tips - Width over Drums | 3800mm12.47ft |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle and Plus Tips - Outside Diameter | 1971mm6.47ft |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle Tips - Outside Diameter | 1971mm6.47ft |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle and Plus Tips - Width over Drums | 3800mm12.47ft |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle Tips - Drum Diameter | 1610mm5.28ft |
| Attachment - Wheels: 1200 mm (47.25 in) Plus Tips - Drum Width | 1200mm3.94ft |
| Attachment - Wheels: 1200 mm (47.25 in) Paddle and Plus Tips - Tips per Wheel | 30 |
| Attachment - Wheels: 1200 mm (47.25 in) Plus Tips - Tips per Wheel | 30 |
