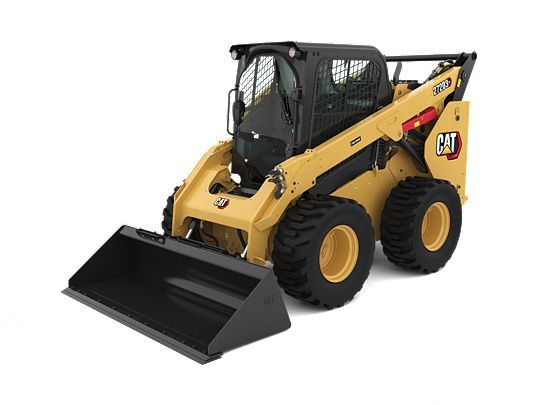

272D3 XE Skid Steer Loader
The Cat® 272D3 XE Skid Steer Loader, with its powerful engine, high output hydraulic system, high lift forces and vertical lift design, provides the maximum performance for work tool productivity, digging, truck loading and material handling.
Documents
Quiet and ComfortableTest
The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.
Maximum PerformanceTest
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
Making Your Job EasierTest
Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.
Optimized Machine CapabilityTest
Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
A Smooth RideTest
A standard, Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.
*Photo shown may vary from machine referenced.
Industry Leading Hydraulic PowerTest
The 272D3 XE hydraulic system provides high flow and high pressure that delivers industry leading hydraulic horsepower to efficiently run even the most power hungry work tools.
Engine
| Gross Power - SAE J1995 | 82kW110HP |
|---|---|
| Net Power - SAE 1349 | 79kW106HP |
| Displacement | 3.8l232in³ |
| Stroke | 120mm4.7in |
| Bore | 100mm3.9in |
| Net Flywheel Power | 79kW106HP |
| Engine Model | Cat C3.8 DIT (turbo) |
| Net Power - ISO 9249 | 80kW107HP |
| Peak Torque - 1,500 rpm - SAE J1995 | 374N·m276ft·lbf |
Operating Specifications
| Rated Operating Capacity | 1680kg3700lb |
|---|---|
| Tipping Load | 3365kg7400lb |
| Breakout Force - Tilt Cylinder | 3339kg7362lb |
| Breakout Force - Lift Cylinder | 2760kg6085lb |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted). |
| Rated Operating Capacity with Optional Counterweight | 1795kg3950lb |
Weights
| Operating Weight | 4342kg9573lb |
|---|---|
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted). |
Dimensions
| Wheel Base | 1386mm54.6in |
|---|---|
| Height - Top of Cab | 2133mm84in |
| Vehicle Width over Tires | 1930mm76in |
| Ground Clearance | 263mm10.4in |
| Departure Angle | 28° |
| Maximum Dump Angle | 51° |
| Bumper Overhang - Behind Rear Axle | 1175mm46.2in |
| Turning Radius from Center - Machine Rear | 1899mm74.7in |
| Length - Without Bucket | 3226mm127in |
| Reach - Maximum Lift/Dump | 736mm29in |
| Clearance at Maximum Lift and Dump | 2474mm97.4in |
| Bucket Pin Height - Maximum Lift | 3265mm128.6in |
| Bucket Pin Height - Carry Position | 235mm9.3in |
| Turning Radius from Center - Coupler | 1466mm57.7in |
| Bucket Pin Reach - Maximum Lift | 344mm13.5in |
| Rack Back Angle - Maximum Height | 84° |
| Maximum Overall Height | 4103mm161.5in |
| Length - With Bucket on Ground | 3937mm155in |
| Maximum Reach - With Arms Parallel to Ground | 1246mm49.1in |
| Turning Radius from Center - Bucket (racked) | 2301mm90.6in |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, no optional counterweights, Cat PC 14 × 17.5 tires and manual quick coupler (unless otherwise noted). |
| Roll Back Angle | 28° |
Cab
| ROPS | ISO 3471:2008 |
|---|---|
| FOPS | ISO 3449:2005 Level I |
Service Refill Capacities
| Cooling System | 16l4.1gal (US) |
|---|---|
| Engine Crankcase | 13l3.5gal (US) |
| Fuel Tank | 120l31.7gal (US) |
| Hydraulic System | 55l14.5gal (US) |
| Hydraulic Tank | 39l10.3gal (US) |
| Chain Box - Each Side | 10.2l2.7gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 19l5gal (US) |
Hydraulic System
| Standard Flow Mode - Loader Hydraulic Pressure | 23000kPa3335psi |
|---|---|
| Standard Flow Mode - Hydraulic Power - Calculated | 33kW44HP |
| Standard Flow Mode - Loader Hydraulic Flow | 86l/min23gal/min |
| Note | *When equipped with Cat 400 Series work tools. |
| Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure | 28000kPa4061psi |
| Hydraulic Flow - XE - Maximum Loader Hydraulic Flow* | 150l/min40gal/min |
| Hydraulic Flow - XE - Hydraulic Power (calculated) | 70kW94HP |
Power Train
| Travel Speed - Forward or Reverse - One Speed | 11.6km/h7.2mile/h |
|---|---|
| Travel Speed - Forward or Reverse - Two Speed | 16.6km/h10.3mile/h |
Air Conditioning System (if equipped)
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
|---|
Noise Level
| Note (2) | **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|---|---|
| Outside Cab*** | 104dB(A)104dB(A) |
| Inside Cab** | 83dB(A)83dB(A) |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (3) | ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
