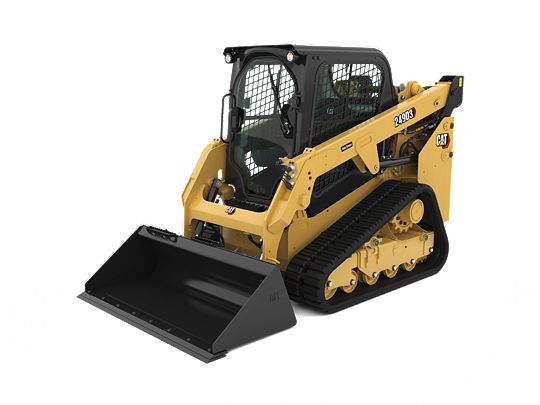

249D3 Compact Track Loader

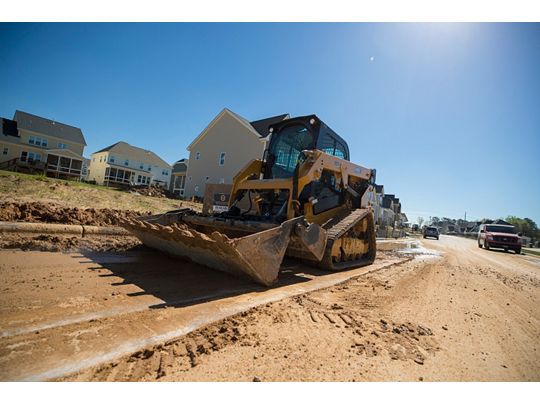

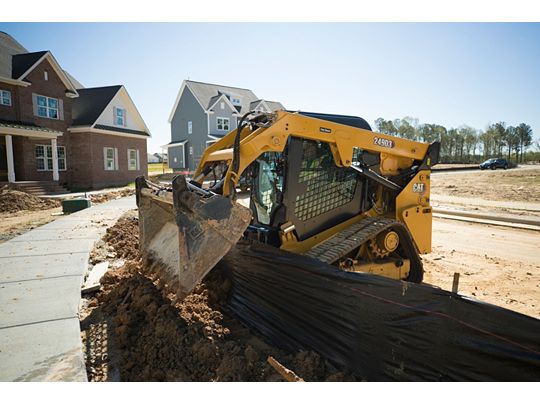

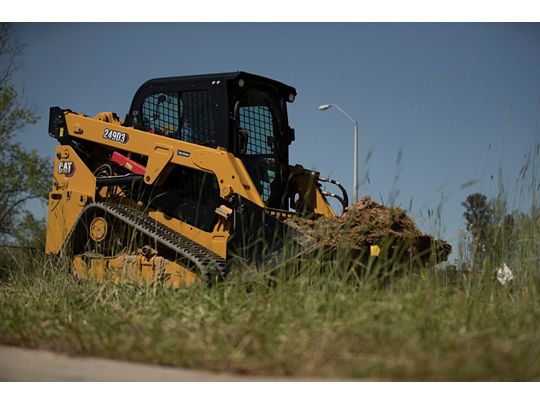

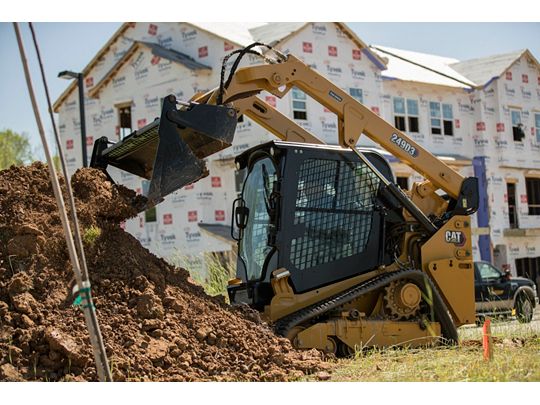

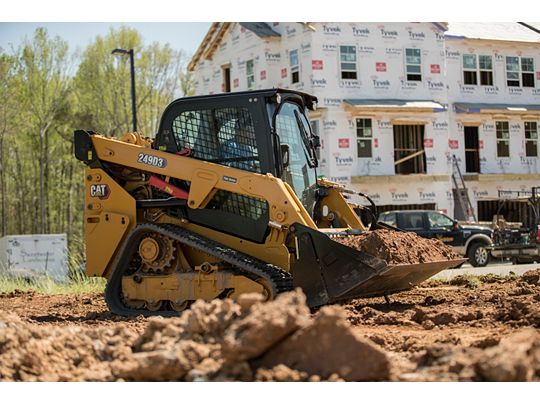

The Cat® 249D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Documents


Quiet and ComfortableTest

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum PerformanceTest

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job EasierTest

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

A Smooth RideTest

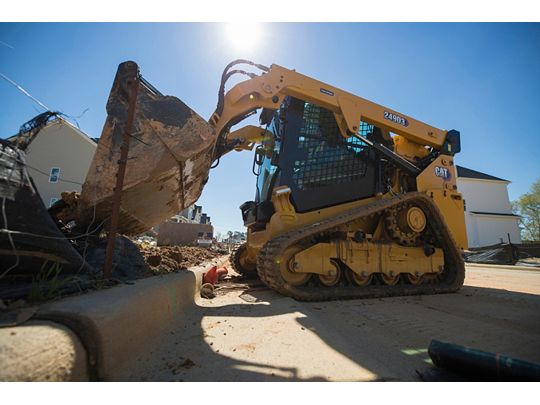

A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Optimized Machine CapabilityTest

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Engine

Gross Power - SAE J199550.1kW67.1HP
Displacement2.2l134.3in³
Bore84mm3.3in
Stroke100mm3.9in
Net Power - ISO 924949.6kW66.5HP
Net Power49.1kW65.8HP
Net Power - SAE 134949.1kW65.8HP
Peak Torque - 1,500 rpm - SAE J1995208N·m153ft·lbf
Engine ModelCat C2.2 CRDI

Operating Specifications

Rated Operating Capacities - 35% Tipping Load790kg1740lb
Tipping Load2260kg4970lb
Ground Contact Area - With 320 mm/12.6 in Track0.89m²1373in²
Ground Pressure - With 320 mm/12.6 in Track39.3kPa5.7psi
Breakout Force - Tilt Cylinder1772kg3907lb
Ground Contact Area - With 400 mm/15.7 in Track1.11m²1716in²
Ground Pressure - With 400 mm/15.7 in Track32.2kPa4.7psi
Rated Operating Capacities - 50% Tipping Load1130kg2485lb
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Rated Operating Capacity with Optional Counterweight1225kg2700lb

Weights

Operating Weight3552kg7831lb
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Dimensions

Length - Track on Ground1384mm54.5in
Overall Length - Track1808mm71.2in
Height - Top of Cab2039mm80.3in
Ground Clearance194mm7.6in
Departure Angle34.5°
Maximum Dump Angle48°
Vehicle Width (400 mm/15.7 in tracks)1756mm69.1in
Length - With Bucket on Ground3233mm127.3in
Maximum Overall Height3831mm150.8in
Bucket Pin Height - Carry Position219mm8.6in
Maximum Reach - With Arms Parallel to Ground1317mm51.8in
Length - Without Bucket2523mm99.3in
Turning Radius from Center - Machine Rear1458mm57.4in
Bucket Pin Height - Maximum Lift3002mm118.2in
Clearance at Maximum Lift and Dump2253mm88.7in
Vehicle Width (320 mm/12.6 in tracks)1676mm66in
Turning Radius from Center - Coupler1160mm45.7in
Reach - Maximum Lift/Dump727mm28.6in
Rack Back Angle - Maximum Height87.5°
Turning Radius from Center - Bucket2060mm81.1in
NoteOperating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Bucket Pin Reach - Maximum Lift311mm12.2in

Cab

ROPSISO 3471:2008
FOPSISO 3449:2005 Level I

Hydraulic System

Hydraulic Flow - Standard - Loader Hydraulic Pressure23000kPa3336psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow99l/min26gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure23000kPa3336psi
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)38kW50.9HP
Hydraulic Flow - Standard - Loader Hydraulic Flow69l/min18gal/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated)26.5kW35.5HP

Power Train

Travel Speed - Forward or Reverse - One Speed8.1km/h5mile/h
Travel Speed - Forward or Reverse - Two Speed12.2km/h7.6mile/h

Service Refill Capacities

Engine Crankcase10l2.6gal (US)
Fuel Tank57l15.1gal (US)
Hydraulic System45l11.9gal (US)
Cooling System12l3.2gal (US)
Hydraulic Tank34l9gal (US)

Noise Level

Outside Cab***103dB(A)103dB(A)
Inside Cab**83dB(A)83dB(A)
Note (3)***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (2)**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (1)Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Air Conditioning System (if equipped)

Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
