910 Compact Wheel Loader
The Cat® 910 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.
Documents
Cat® C3.6 EngineTest
EU Stage V and U.S. EPA Tier 4 Final compliant.
Cat Optimized Z-bar Loader LinkageTest
The Cat Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.
Work ToolsTest
The 910 features the Cat exclusive, Performance Series Buckets, as well as high visibility pallet forks. These tools enhance productivity and are available with either an Integrated Toolcarrier (IT) or ISO (wide) coupler style. Legacy coupler tools such as brooms, grapple buckets, multi-purpose buckets and other work tools remain compatible.
Hydraulics and ControlsTest
State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application.
Tuned DrivetrainTest
Smooth shifting and powerful acceleration is matched with modulated hydrostatic braking in the inching/braking pedal, creating a rhythm for material moving. Creeper and electronic engine speed control makes broom and snow blower work easy. Operator tunes between smooth or aggressive shifting with the push of a button.
CabTest
All around visibility is further enhanced with the availability of a rearview camera. The deluxe cab ensures operator comfort with a heated, air suspension seat and easy to use controls. Available features such as Implement and Hystat Aggressiveness, Ride Control, Lift and Tilt Kickouts, Fork/Bucket Mode and Rimpull Control allow the operator to customize the machine via a soft touch keypad.
ServiceabilityTest
Extended service intervals and excellent service access make daily checks quick and easy allowing you to get to work sooner.
Efficiently PowerfulTest
Efficiently Powerful with its high full turn tipping loads, powerful breakout forces and efficient engine power delivers a balanced solution for all customer applications.
Standard Fuel Savings FeaturesTest
Standard Fuel Savings Features such as Eco Mode, On Demand Cooling Fan, and Auto Engine Idle Shutdown make the 910 both powerful and fuel efficient.
Weights
| Operating Weight | 8109kg18102lb |
|---|
Engine
| Rated Net Power - Rated Engine Speed | 2200r/min2200r/min |
|---|---|
| Maximum Gross Power - Rated Engine Speed | 1800r/min1800r/min |
| Rated Net Power - SAE J1349 | 74kW99HP |
| Maximum Gross Power - ISO 14396 (metric) | 112HP112HP |
| Rated Net Power - ISO 9249 | 73kW98HP |
| Maximum Gross Torque - SAE J1995 | 454N·m335ft·lbf |
| Maximum Gross Torque - ISO 14396 | 450N·m332ft·lbf |
| Maximum Net Torque - SAE J1349 | 446N·m329ft·lbf |
| Maximum Net Torque - ISO 9249 | 443N·m327ft·lbf |
| Displacement | 3.6l220in³ |
| Bore | 98mm3.85in |
| Stroke | 120mm4.72in |
| Engine Model | Cat C3.6 |
| Emissions | Engine meets Tier 4 Final/Stage V emission standards. |
| Note | Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Maximum Gross Power - ISO 14396 | 82kW110HP |
| Maximum Gross Power | 82kW110HP |
Cab
| ROPS | ISO 3471:2008 |
|---|---|
| FOPS | EN ISO 3449:2008 (ISO 3449:2005) |
| Note (2) | The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A). |
| Note (3) | The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A). |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (4) | *The measurements were conducted with the cab doors and windows closed. |
Service Refill Capacities
| Cooling System | 21.5l5.7gal (US) |
|---|---|
| Fuel Tank | 165l43.6gal (US) |
| Hydraulic System - Including Tank | 98l25.9gal (US) |
| Hydraulic Tank | 55l14.5gal (US) |
| Transmission | 3.2l0.8gal (US) |
| Note | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. |
| Axles - Front Center Differential | 7.5l2gal (US) |
| Axles - Rear Center Differential | 7.5l2gal (US) |
| Engine Crankcase | 10l2.6gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 18l4.8gal (US) |
Buckets
| Bucket Capacities - General Purpose | 1.3-1.9 m³ (1.7-2.5 yd³) |
|---|---|
| Bucket Capacities - Light Material | 2.5-3.5 m³ (3.3-4.6 yd³) |
| Bucket Capacities | 1.3-1.9 m3 (1.7-2.5 yd3) |
Steering
| Maximum Working Pressure - Steering Pump | 18500kPa2683psi |
|---|---|
| Steering Articulation Angle - Each Direction | 40°40° |
| Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed | 3.2s3.2s |
| Maximum Flow - Steering Pump | 66l/min17gal/min |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.75turns3.75turns |
Loader Hydraulic System
| Hydraulic Cycle Time - Dump, at Maximum Reach | 1.4s1.4s |
|---|---|
| Hydraulic Cycle Time - Total Cycle Time | 12.5s12.5s |
| Maximum Working Pressure - Implement Pump | 23500kPa3408psi |
| Relief Pressure - Tilt Cylinder | 34000kPa4931psi |
| Hydraulic Cycle Time - Rackback | 2.2s2.2s |
| Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure | 21000kPa3046psi |
| Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift | 5.2s5.2s |
| Maximum Flow - Implement Pump | 122l/min32gal/min |
| Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure | 21000kPa3046psi |
| Maximum Flow - Implement Pump - 4th Function, Maximum Flow | 90l/min24gal/min |
| Maximum Flow - Implement Pump - 3rd Function, Maximum Flow | 90l/min24gal/min |
| Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level | 3.7s3.7s |
Transmission
| Note | *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1. |
|---|---|
| Forward and Reverse - Speed Range 3 | 40km/h25mile/h |
| Forward and Reverse - Speed Range 2* | 20km/h12.5mile/h |
| Forward and Reverse - Speed Range 1* | 10km/h6.3mile/h |
Tires
| Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
|---|---|
| Standard Size | 15.5 R25 L2 XTLA |
| Other Choices Include | 17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow |
| Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. |
Axles
| Front | Fixed; Locking differential (standard) |
|---|---|
| Rear | Oscillating ±11 degrees; Locking differential (Standard) |

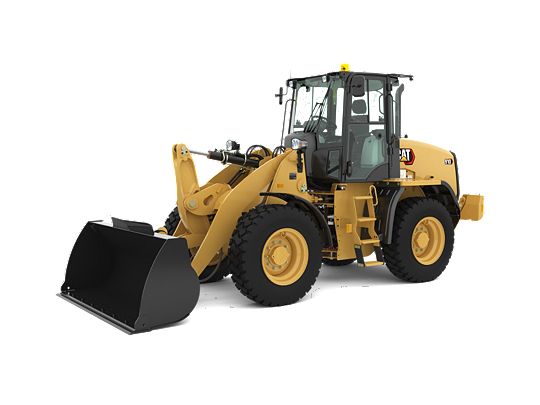

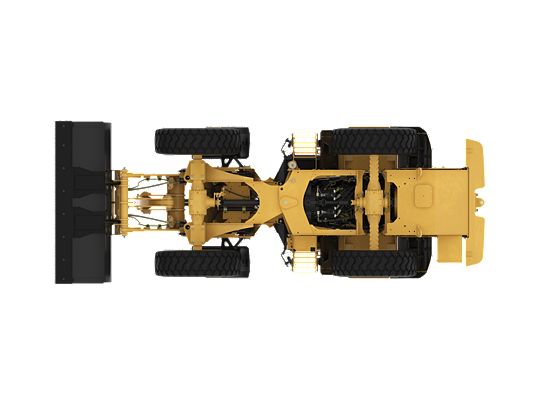

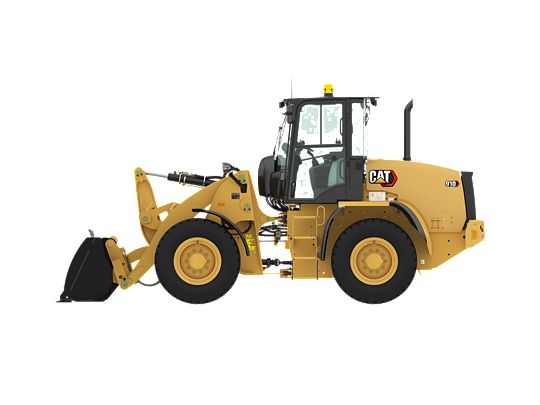

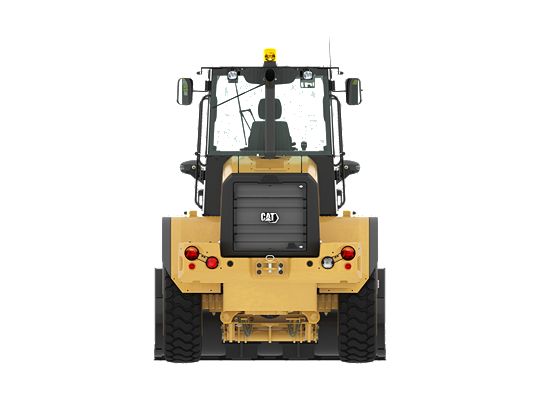

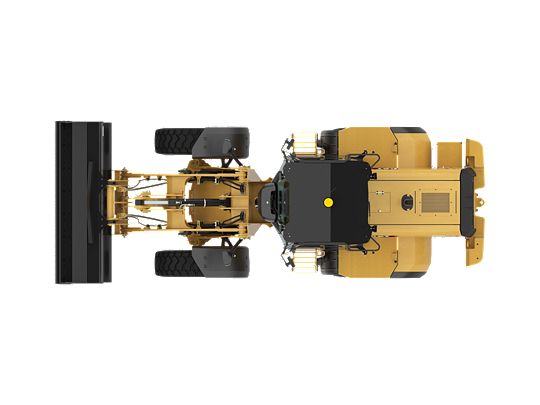

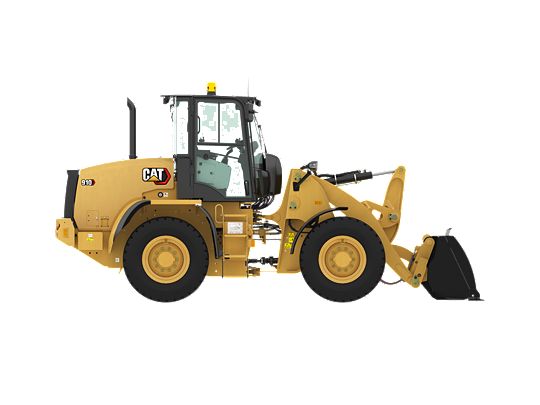

360° Exterior View
