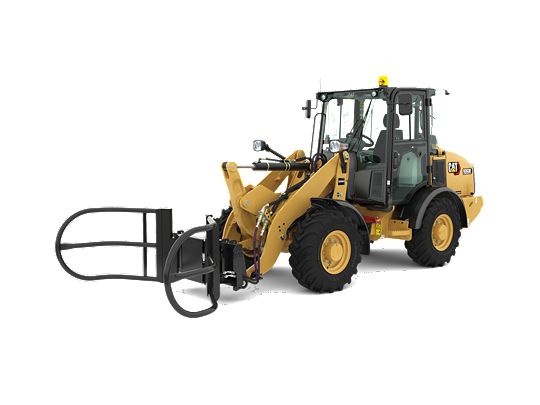

906M Ag Handler - Agricultural Arrangement
The Cat® 906M Ag Handler is compact, yet powerful, allowing you to do what you want, when you need to, in any agricultural application. The Ag Handler has features that will maximize the performance of the machine, making it a perfect fit to use around the farm.
Documents
Application Specific ConfigurationTest
The Ag Handler is configured with items such as a high speed transmission for quick travel from farm to field, engine air pre-cleaner for dusty environments, Ag specific tires to maximize traction and LED work lights when operating early in the morning, ensuring that this machine is configured for success.
Efficiently PowerfulTest
Experience hybrid like fuel efficiency with an intelligent hydrostatic power train. Eco Mode will allow you to maximize fuel efficiency while maintaining the power going into the pile.
Work Made EasyTest
Move more with Caterpillar’s patented Optimized Z-Bar linkage. The parallel lift and high tilt forces throughout the working range allow you to safely and confidently handle loads with precise control. Multi-function work has never been easier with dedicated pumps for each system, allowing the operator to simultaneously lift, steer and drive without compromise.
Enjoy All Day ComfortTest
Have a seat and enjoy excellent all around visibility, whisper quiet sound levels, and low-effort joystick controls while riding on a fully adjustable seat suspension. The spacious cab combined with smooth hydraulic and power train controls make this the most comfortable seat on your job site.
Customize Your ExperienceTest
Meet your application requirements and individual preferences with Caterpillar’s industry first adjustable power train and implement response settings. Fine tune machine performance with adjustments at your fingertips through the soft touch button keypad.
Engine
| Maximum Gross Power | 54.6kW73.2HP |
|---|---|
| Engine Model | Cat® C3.3B DIT* |
| Maximum Gross Power - ISO 14396 | 54.6kW73.2HP |
| Maximum Gross Power - ISO 14396 (metric) | 74.2mhp74.2mhp |
| Rated Net Power - 2,400 rpm - SAE J1349 | 53.6kW71.9HP |
| Rated Net Power - 2,400 rpm - ISO 9249 | 53.6kW72.9HP |
| Emissions | *The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards. |
Weights
| Operating Weight | 5789kg12758lb |
|---|---|
| Note | Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP). |
Buckets
| Bucket Capacities | 0.75-1.5 m³ (1.0-2.0 yd³) |
|---|---|
| Bucket Capacities - ISO Coupler | 0.75-1.5 m³ |
| Bucket Capacities - SSL Style Coupler | 1.0-2.0 yd³ |
Service Refill Capacities
| Cooling System | 17l4.5gal (US) |
|---|---|
| Fuel Tank | 52l13.7gal (US) |
| Hydraulic System | 70l18.5gal (US) |
| Engine Oil | 11.2l3gal (US) |
Travel Speeds
| Speed 1 | 10km/h6.2mile/h |
|---|---|
| Speed 2 | 20km/h12.4mile/h |
| High Speed | 35km/h21.7mile/h |
Hydraulic System
| Main Relief - 3rd Aux Flow | 235bar3400psi |
|---|---|
| Main Relief - 3rd Aux Flow: Standard | 76l/min20gal/min |
| Main Relief - 3rd Aux Flow: High Flow | 120l/min31gal/min |
| Hydraulic Cycle Time - Lift | 5.2 seconds |
| Hydraulic Cycle Time - Lower | 3.2 seconds |
| Hydraulic Cycle Time - Dump | 1.3 seconds |
| Hydraulic Cycle Time - Rackback | 2.1 seconds |
Dimensions - With ISO Coupler - Approximate
| Height - Ground to Cab | 2436mm8ft |
|---|---|
| Height - Ground Clearance | 302mm11in |
| Length - Wheel Base | 2170mm7.08ft |
| Length - Overall with Bucket | 5394mm17.67ft |
| Reach - Bucket at 45° | 736mm2.33ft |
| Dig Depth | 109mm4.2in |
| Clearance - Bucket at 45° | 2464mm8.08ft |
| Clearance - Level Bucket | 3005mm9.83ft |
| Height - Bucket Pin | 3212mm10.5ft |
| Departure Angle | 33° |
| Length - Overall with Forks | 5921mm19.42ft |
| Reach - Ground | 742mm2.42ft |
| Reach - Level Arm | 1227mm4ft |
| Fork Dig Depth | 80mm3.1in |
| Clearance - Level Arm | 1370mm4.42ft |
| Clearance - Full Lift | 3034mm9.92ft |
| Fork Reach at Full Lift | 455mm1.42ft |
| Turning Radius - Over Bucket | 4412mm14.42ft |
| Turning Radius - Inside Tire | 2128mm6.92ft |
| Width - Bucket | 1880mm6.17ft |
| Width - Tread Center | 1420mm4.58ft |
| Width - Over Tires | 1840mm6ft |
| Articulation Angle | 39° |
| Dump Angle at Full Lift | 49° |
| Note | Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires. |
Dimensions - With SSL Coupler - Approximate
| Height - Ground to Cab | 2436mm8ft |
|---|---|
| Height - Ground Clearance | 315mm12.4in |
| Length - Wheel Base | 2170mm7.08ft |
| Length - Overall with Bucket | 5552mm18.25ft |
| Reach - Bucket at 45° | 837mm2.67ft |
| Dig Depth | 117mm4.6in |
| Clearance - Bucket at 45° | 2370mm7.58ft |
| Clearance - Level Bucket | 2998mm9.83ft |
| Height - Bucket Pin | 3212mm10.5ft |
| Departure Angle | 33° |
| Length - Overall with Forks | 5923mm19.42ft |
| Reach - Ground | 744mm2.42ft |
| Reach - Level Arm | 1291mm4.17ft |
| Fork Dig Depth | 6mm0.3in |
| Clearance - Level Arm | 1444mm4.67ft |
| Clearance - Full Lift | 3108mm10.17ft |
| Fork Reach at Full Lift | 520mm1.67ft |
| Turning Radius - Over Bucket | 4448mm14.58ft |
| Turning Radius - Inside Tire | 2108mm6.83ft |
| Width - Bucket | 1880mm6.17ft |
| Width - Tread Center | 1420mm4.58ft |
| Width - Over Tires | 1840mm6ft |
| Articulation Angle | 39° |
| Dump Angle at Full Lift | 47° |
| Note | Dimensions shown are based on the machine equipped with general purpose bucket and standard 340/80 R18, MX, XMCL tires. |
Operating Specifications - ISO Coupler
| Tire Size | 340/80 R18 |
|---|---|
| Operating Weight | 5743kg12656lb |
| Rated Bucket Capacity | 0.9m³1.2yd³ |
| Breakout Force - Bucket | 49kN11044lbf |
| Rated Operating Load at Full Turn - Bucket | 1763kg3884lb |
| Straight Tipping Load - Bucket | 4390kg9674lb |
| Full Turn Static Tipping Load - Bucket | 3525kg7769lb |
| Rack Back - Transport Position | 51° |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center) | 2306kg5082lb |
| Note | Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP). |
Operating Specifications - SSL Coupler
| Tire Size | 340/80 R18 |
|---|---|
| Operating Weight | 5987kg13199lb |
| Rated Bucket Capacity | 0.9m³1.18yd³ |
| Breakout Force - Bucket | 40kN9004lbf |
| Rated Operating Load at Full Turn - Bucket | 1650kg3612lb |
| Straight Tipping Load - Bucket | 4194kg9246lb |
| Full Turn Static Tipping Load - Bucket | 3482kg7676lb |
| Rack Back - Transport Position | 51° |
| Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center) | 2194kg4835lb |
| Note | Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP). |
Maximum Material Densities - General Purpose Bucket
| Rated Capacity | 0.9m³1.2yd³ |
|---|---|
| Dump Height | 2464mm97in |
| Maximum Material Density | 1737kg/m³3031lb/yd³ |
| Bucket Width | 1880mm74in |
| Note | Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler. |
Maximum Material Densities - Multi Purpose Bucket
| Rated Capacity | 0.8m³1yd³ |
|---|---|
| Dump Height | 2433mm85in |
| Maximum Material Density | 1976kg/m³3483lb/yd³ |
| Bucket Width | 1880mm74in |
| Note | Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler. |
Maximum Material Densities - Light Material Bucket
| Rated Capacity | 1.25m³1.6yd³ |
|---|---|
| Dump Height | 2388mm85in |
| Maximum Material Density | 1349kg/m³2323lb/yd³ |
| Bucket Width | 2080mm82in |
| Note | Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler. |
