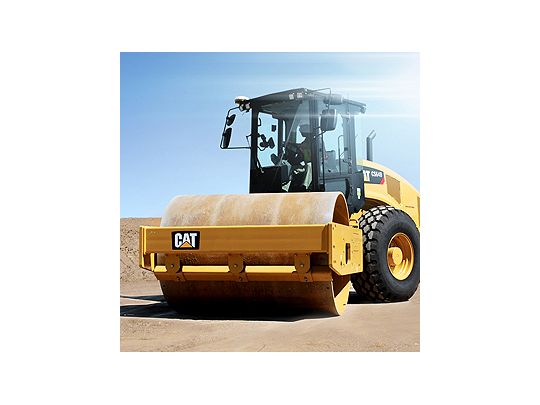

CS64B Vibratory Soil Compactor
Powered by the 98 kW (131 hp) Cat® C4.4 engine, the CS64B provides exceptional performance for granular soil compaction applications.
Documents
Comfortable and Ergonomic Operator StationTest
- Features pivoting seat with integrated multifunction LCD display and control console
- Outstanding visibility to the front and rear of machine
- Low sound levels and vibration for greater operator comfort and productivity
Rear Vision CameraTest
- The rear vision camera enhances visibility for more complete operator control and safety.
Exceptional Propel SystemTest
- Built around the exclusive Cat dual pump propel system, two pumps provide separate dedicated flow to drum drive motor and rear axle motor for exceptional gradeability and traction in forward and reverse.
- Electronic propel control provides more precise machine control.
Virtually Maintenance FreeTest
- Maintenance-free hitch bearings.
- Extended maintenance intervals for vibratory system and hydraulic system, providing more uptime and lower maintenance costs.
Enhanced Compaction PerformanceTest
- More weight at the drum and greater amplitude.
- Automated speed control and vibratory system functions make it easy to ensure consistent, high quality compaction.
Technologies that Enhance Quality and ProductivityTest
- Exclusive semi-autonomous Command for Compaction technology automates compaction to offer complete process control and help promote more uniform results.
- Measurement and documentation technologies help the operator determine when compaction has been completed to specification for greater productivity and uniform compaction quality.
- Accelerometer-based (CMV) and exclusive Machine Drive Power (MDP) measurement technologies available.
Weights
| Operating Weight - With Cab | 12055kg26569lb |
|---|---|
| Weight - Drum with Cab | 7120kg15690lb |
Operating Specifications
| Compaction Width | 2134mm84in |
|---|---|
| Turning Radius - Inside Drum Edge | 3.68m12.08ft |
| Ground Clearance | 442mm17.4in |
| Static Linear Load - With Cab | 33.4kg/cm186.8lb/in |
| Travel Speed - Maximum | 11km/h6.8mile/h |
Engine
| Gross Power | 98kW131HP |
|---|---|
| Engine Model | Cat C4.4 with ACERT |
Dimensions
| Overall Width | 2.3m7.58ft |
|---|---|
| Drum Diameter | 1534mm60.4in |
| Overall Length | 5.85m19.17ft |
| Height - With ROPS/FOPS or Cab | 3.11m10.25ft |
| Drum Width | 2134mm84in |
| Wheel Base | 2.9m9.58ft |
Vibratory System
| Centrifugal Force - Minimum | 133kN29900lb |
|---|---|
| Nominal Amplitude - High | 1.9mm0.075in |
| Nominal Amplitude - Low | 0.95mm0.037in |
| Centrifugal Force - Maximum | 234kN52600lb |
| Variable Frequency Option Range | 23.3 - 30.5 Hz (1400-1830 vpm) |
| Vibratory Frequency - Standard | 30.5 Hz (1830 vpm) |
Tires
| Tires | 23.1 x 26 |
|---|
Service Refill Capacities
| Fuel Tank Capacity | 242l64gal (US) |
|---|
