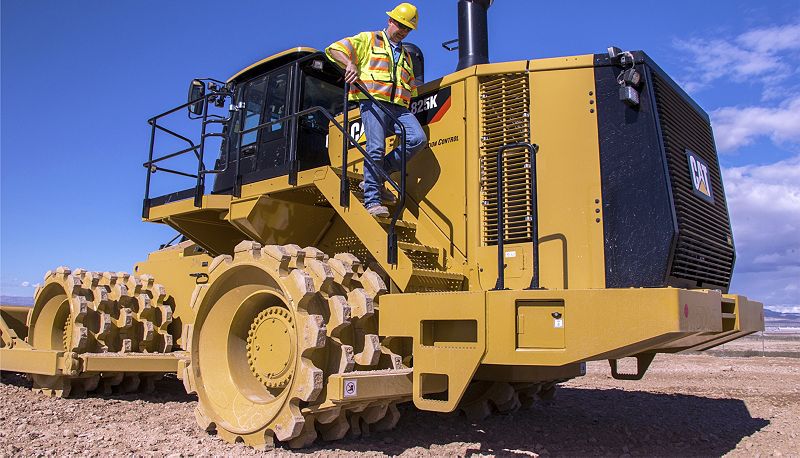

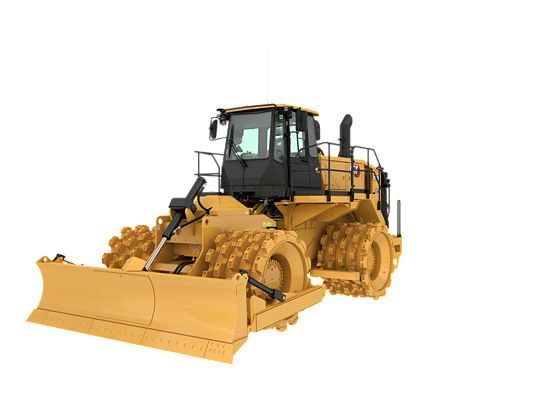

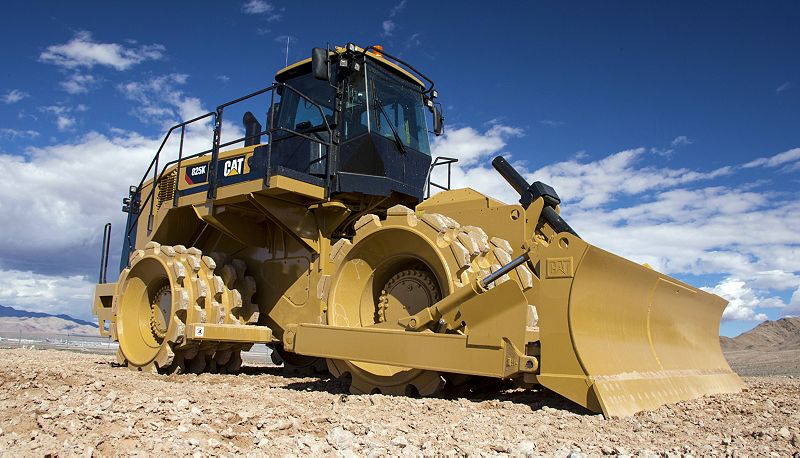

825K Soil Compactor
Cat Soil Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Representing a long-standing commitment to quality and performance, this rugged, powerful machine is designed and built for heavy-duty compaction and dozing operations. Focused on helping our customers succeed, we have continued to build upon each new series. The 825K continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
POWERFUL EFFICIENCYTest
- Auto shift mode, when active, allows machine to upshift or downshift based on machine speed and torque, optimizing performance and saving fuel.
- The left pedal acts as a brake, transmission neutralizer and an engine decelerator to override the engine speed selected by the throttle lock. Operators can slow down when the throttle lock is engaged and to return to throttle lock without pressing a resume or set button. Helps maneuvering around trucks, tractors or other obstacles.

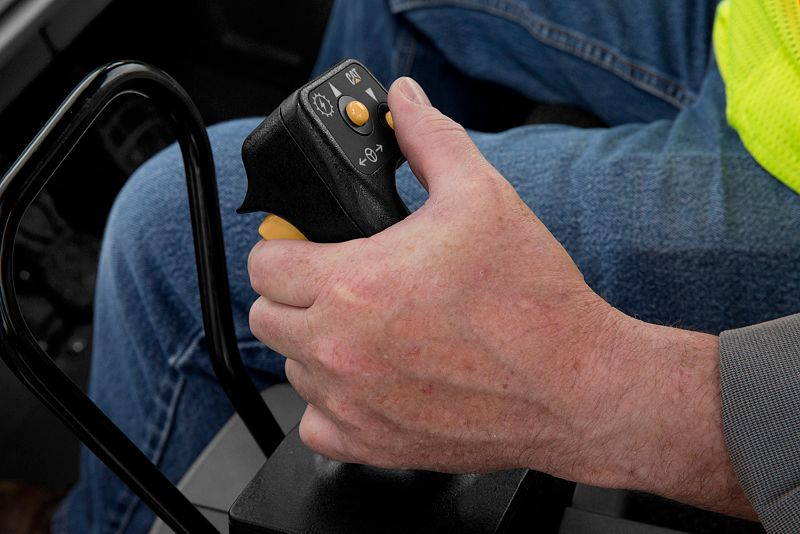

- Steering and Transmission Integrated Control System (STIC™) enhances operator comfort by integrating steering and transmission control functions in a single lever. Includes finger-controlled gear selection.
- Load sensing hydraulic steering system ensures smooth steering at all speeds and engine levels.
- Variable displacement piston pumps enhance efficiency.
- Steering articulates 43 degrees each direction allowing operators precise positioning for easy operation in tight areas.
- Electro hydraulic controls help ensure responsive, predictable implement control.
- Electronically controlled hydraulic cylinder stops deliver smooth machine operation, less stress on operator.
LONG TERM VALUE AND DURABILITYTest
- Designed and made with purpose-built structures to remain safe and durable for the long run.
- Long-life-designs, materials and robotic welding ensure multiple life cycles and ability to withstand the toughest conditions.
- Full box-section rear frame resists torsional shock and twisting forces.
- Heavy-duty steering-cylinder mounts efficiently conduct steering loads into the frame.
PERFORMANCE WITH LESS FUELTest
- Single Clutch Speed Shifting (SCSS) delivers consistent, smooth shifting and efficiency.
- Strategic use of metallurgy and heat treating ensures long-life gears.
- Torque converter with lock-up clutch eliminates drive losses, reduces system heat, improves travel speeds, and increases fuel efficiency.
- Cat C15 engine is built and tested to meet your most demanding applications.
- Two engine options are available to meet Tier 4 Final/Stage IV or Tier 3/Stage IIIA equivalent emission standards. (depending upon market).
- Fully integrated electronic engine controls work in concert with the entire machine to make fuel go farther.
- Engine Idle Shutdown reduces fuel waste during idling periods.
- Delayed Engine Shutdown maximizes durability.
OPTIMIZE COMPACTIONTest
- Chevron Tamping Tip Design provides greater ground pressure, more compaction, excellent traction and a smooth ride.
- Compaction is achieved from the bottom of the lift to the top. The tapered tips walk out of the lift without “fluffing” the soil. The top of the lift is compacted and the surface is relatively smooth and sealed so hauling units are able to maintain a high speed when traveling over the fill.
- The 825K travel speed delivers four forces of compaction: pressure, manipulation, impact and vibration.

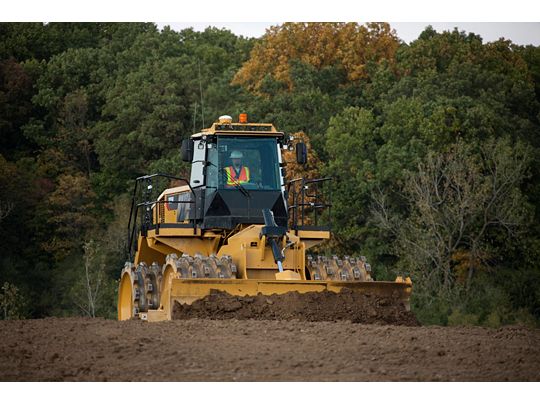

- This compactor also spreads fill, potentially reducing the number of spreader tractors needed for the project.
- Symmetrical tamping tip pattern delivers equal compaction in forward or reverse. Tips are full perimeter and replaceable.

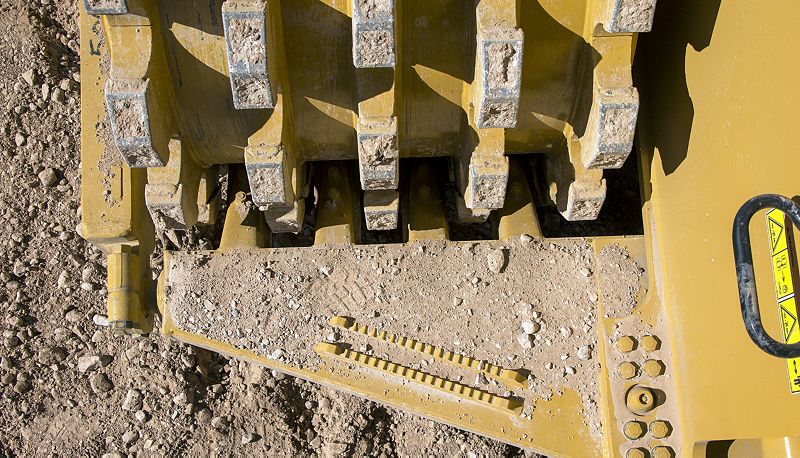

- Two cleaner bars on each wheel keep drums free of carryover dirt, in forward and reverse, maximizing efficiency. Cleaner bars are available with standard or abrasive tips depending upon the application. Bars are adjustable and bar tips are heat-treated and direct-hardened cutting-edge steel to increase life.
OPERATOR COMFORT AND CONTROLTest
- Pressurized cab sits on isolation mounts improving comfort and reducing sound.
- Cab features a convenient floor storage tray/lunch box.
- Cat Comfort Series III Seat includes mid-back design, thick, contoured cushions, air suspension, six-way adjustments, and a seat-mounted implement pod and STIC steer that moves with the seat for optimal control.
- Control panel gives operators the information and controls for safer and time-saving settings.
- STIC control simplicity provides maximum responsiveness and control with STIC that combines directional selection, gear selection and steering into a single lever.
PRODUCTIVITY WITH TECHNOLOGYTest

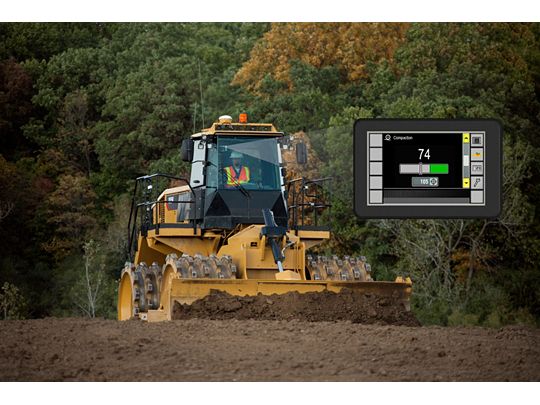

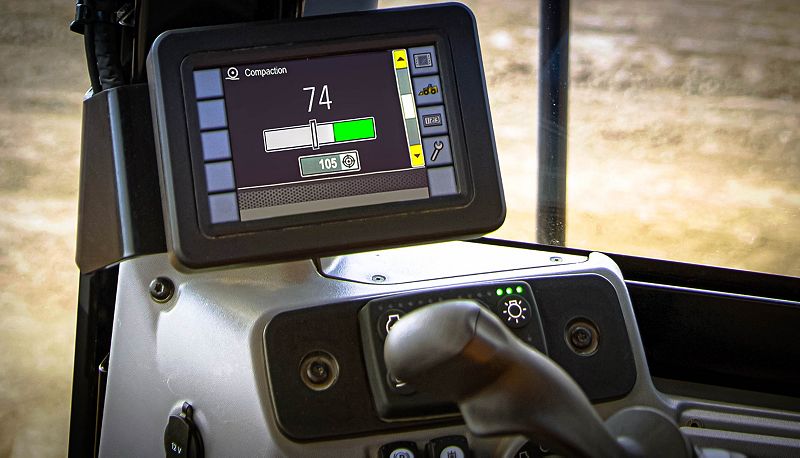

- Cat Compaction Control system uses Machine Drive Power (MDP) technology to measure rolling resistance and correlates it with soil stiffness. MDP works in both cohesive or granular soils. Optional 3D mapping system maps compaction measurements to the precise location the operator is working, providing a real-time view of progress, and a record of compaction uniformity.
- DETECT technologies help keep people and equipment safe by keeping operator aware of the work area and by monitoring and reporting unsafe conditions, like avoidance zones.
- COMPACT technologies combine advanced compaction measurement, in-cab guidance and reporting capabilities to help you consistently meet compaction targets fast, uniformly, and with fewer passes.
- Cat Product Link is deeply integrated into your machine, giving you access to information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface. Helps effectively manage fleet and lower operating costs.
BUILT-IN SAFETY FEATURESTest
- Railings, ladders and non-slip surfaces enhance technician and operator safety.
- Design ensures three points of contact at all times through ground level or platform accessible service areas.
- Rearview camera with in-cab monitor increases operator awareness around the machine.
- Standard cab-mounted LED warning strobes.
- Optional heated mirrors ensure enhanced visibility for safe operation.
- Optional LED lights provide excellent workspace visibility.
- Reduced vibrations to the operator with isolated cab mounts and seat mounted implement and steering controls.
- Low interior sound levels.
- Pressurized cab with filtered air.
REDUCE ENVIRONMENTAL IMPACTTest
- Engine Idle Shutdown saves fuel by avoiding unnecessary idling.
- Reduce waste to the environment with maintenance-free batteries.
- The 825K is built to be rebuilt, maximizing machine life, and minimizing environmental impact. Get the most from your investment, with our sustainable options including Cat Reman and Certified Rebuild programs. With these programs, remanufactured components deliver cost savings of 40 to 70 percent, lowering operating costs while also reducing waste and minimizing the need for raw materials.
TOP-TIER SERVICE AND SUPPORTTest
- Safe and convenient service via ground level or platform access to daily service points.
- Swing-out doors on both sides of engine compartment provide easy access to daily service checks.
- Ecology drains for ease of service and prevention of spills.
- Reduce downtime with VIMS™ system notifications so operators and technicians can resolve problems before failure.
- Sight gauges mean quick visual inspection and minimize fluid contamination.
- Swing-out doors on both sides provide convenient access to daily service check points. Engine compartment lighting aids visibility.
- New ground level service area includes an electrical disconnect, emergency engine shutdown and stairway light switch.
- Cat dealers keep you running with preventive maintenance programs, maintenance contracts, best-in-class parts availability and operator training support.
Engine
| Engine Model | C15 Cat® |
|---|---|
| Net Power | 302kW405HP |
| Rated Power (Net ISO 9249) | 302kW405HP |
| Maximum Net Torque - 1,300 rpm | 2005N·m1478.8lb/ft |
| Maximum Altitude - Without Derating (Tier 4 Final/Stage IV) | 2834m9298ft |
| Net Power - Converter Drive - Gross Power | 324kW435HP |
| Stroke | 171.4mm6.7in |
| Net Power - Converter Drive - Torque Rise | 8,5% |
| Gross Power | 324kW435HP |
| High Idle Speed | 2300r/min2300r/min |
| Rated Power (Net SAE J1349) | 302kW405HP |
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards |
| Low Idle Speed | 800r/min800r/min |
| Net Power - Direct Drive - Torque Rise | 33% |
| Maximum Altitude - Without Derating (Tier 3 Final/Stage IIIA Equivalent) | 2773m9098ft |
| Net Power - Direct Drive - Gross Power | 307kW412HP |
| Bore | 137.2mm5.4in |
| Displacement | 15.2l927.6in³ |
Operating Specifications
| Operating Weight | 35528kg78326lb |
|---|---|
| Operating Weight - Tier 3 Final/Stage IIIA Equivalent | 35081kg77340lb |
| Operating Weight - Tier 4 Final/Stage IV | 35528kg78326lb |
Transmission
| Travel Speeds - Reverse - First | 6.2km/h3.9mile/h |
|---|---|
| Travel Speeds - Forward - First | 5.5km/h3.4mile/h |
| Travel Speeds - Reverse - Third | 19.7km/h12.2mile/h |
| Travel Speeds - Reverse - Second | 11.1km/h6.9mile/h |
| Travel Speeds - Forward - Third | 17.2km/h10.7mile/h |
| Transmission Type | Planetengetriebe – Lastschaltgetriebe – ECPC (Electronic Clutch Pressure Control, Elektronische Kupplungsdrucksteuerung) |
| Travel Speeds - Forward - Second | 9.7km/h6mile/h |
Cab - Standard
| Machine Sound Level (ISO 6395) | 113dB(A)113dB(A) |
|---|---|
| Operator Sound Level - ISO 6396 | 73dB(A)73dB(A) |
Dimensions (Approximate)
| Ground Clearance | 492mm1.6ft |
|---|---|
| Length - With Blade on Ground | 8561mm28.1ft |
| Height - Top of Exhaust Pipe | 4290mm14.1ft |
| Hitch to Centerline of Front Axle | 1850mm6.1ft |
| Turning Radius - Inside of Push Arms | 2627mm8.6ft |
| Centerline of Rear Axle to Edge of Counterweight | 2830mm9.3ft |
| Wheel Base | 3700mm12.1ft |
| Ground Clearance - Bumper | 810mm2.7ft |
| Height - Top of Beacon | 4381mm14.4ft |
| Height - ROPS/Canopy | 4059mm13.3ft |
| Height - Top of Hood | 3162mm10.4ft |
| Width - Over Wheels | 3650mm11.98ft |
Service Refill Capacities
| Hydraulic Tank Only | 134l35.4gal (US) |
|---|---|
| Differential - Final Drives - Rear | 110l29.1gal (US) |
| Fuel Tank | 782l206.6gal (US) |
| Cooling System | 116l30.6gal (US) |
| Differential - Final Drives - Front | 100l26.4gal (US) |
| Transmission | 66l17.4gal (US) |
| Diesel Exhaust Fluid Tank (Tier 4 Final/Stage IV) | 32l8.5gal (US) |
| Engine Crankcase | 34l9gal (US) |
Axles
| Oscillation Angle | ±8° |
|---|---|
| Rear | Planetary – Oscillating |
| Front | Planetary – Fixed |
Hydraulic System
| Maximum Supply Pressure | 24100kPa3495psi |
|---|---|
| Main Relief Pressure | 24100kPa3495psi |
| Cylinders, Double Acting - Tilt, Bore and Stroke | 95.25 mm × 216 mm (3.75 in × 8.5 in) |
| Pump Flow at 1,800 rpm | 117l/min30.9gal/min |
| Cylinders, Double Acting - Lift, Bore and Stroke | 120 mm × 1070 mm (4.7 in × 42.1 in) |
Blades
| Total Tilt Adjustment | 890mm2.9ft |
|---|---|
| Maximum Lift Above Ground | 958mm3.14ft |
| Moldboard - Length | 4390mm14.4ft |
| Blade Tilt Angle - Left - Mechanical | 4,1° |
| Width - Over End Bits | 4628mm15.18ft |
| Blade Tilt Angle - Left - Hydraulic | 5,4° |
| Blade Tip Angle - Total | 14,8° |
| Maximum Depth of Cut | 602mm1.97ft |
| Height - Including Cutting Edge | 1032mm3.4ft |
| Blade Tip Angle - Forward | 7,3° |
| Blade Tilt Angle - Right - Mechanical | 5,1° |
| Blade Tip Angle - Back | 7,5° |
| Blade Tilt Angle - Right - Hydraulic | 6,3° |
| Blade Tilt Angle - Left Full | 10,1° |
| Blade Tilt Angle - Right Full | 10,8° |
Hydraulic System - Steering
| Maximum System Flow | 170 L/min @ 1,800 rpm (44.9 gal/min @ 1,800 rpm) |
|---|---|
| Stroke | 576mm22.7in |
| Steering System - Circuit | Double Acting – End Mounted |
| Vehicle Articulation Angle | 86 degrees |
| Bore | 114.3mm4.5in |
| Steering Pressure Limited | 24000kPa3481psi |
| Steering System - Pump | Piston – Variable Displacement |
Wheels
| Weight | 7333kg16167lb |
|---|---|
| Drum Width | 1125mm3.7ft |
| Drum Diameter | 1299mm4.3ft |
| Tips per Wheel | 65 |
| Width - Over Drums | 3650mm11.98ft |
| Outside Diameter | 1672mm5.5ft |
Cab - Suppression
| Operator Sound Level - ISO 6396 | 72dB(A)72dB(A) |
|---|---|
| Machine Sound Level (ISO 6395) | 110dB(A)110dB(A) |
Braking System
| Parking Brake | Drum and Shoe, Spring Applied, Hydraulic Released |
|---|
